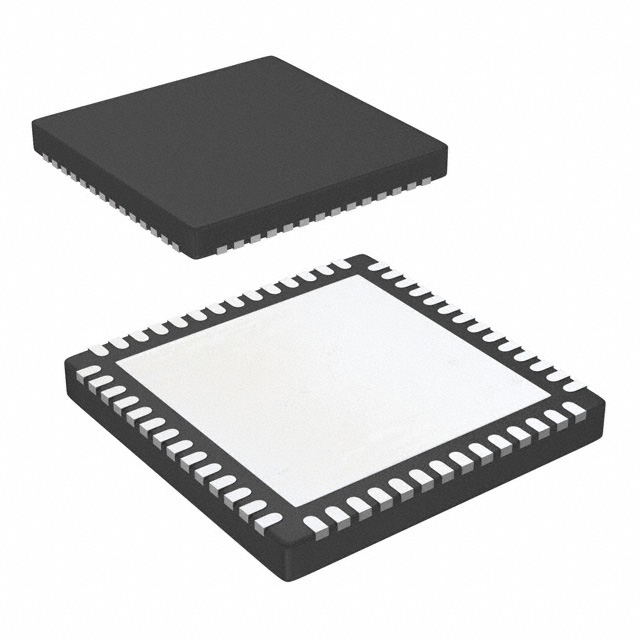

The ADRF6850BCPZ is a highly integrated broadband quadrature demodulator, frequency synthesizer and variable gain amplifier (VGA). Operating in the frequency range of 100 MHz to 1000 MHz, the device is suitable for narrowband and wideband communication applications and is capable of performing orthogonal demodulation from mid-frequency (IF) directly to baseband frequencies.

The ADRF6850 demodulator includes a high-modulus fractional N-fraction frequency synthesizer with integrated VCO with a frequency resolution of better than 1 Hz, and the front-end VGA provides a gain control range of 60 dB.

Applications

Broadband communication

Cellular communication

Satellite communication

Technical specification

IQ quadrature demodulator

Integration of fractional N frequency PLL and VCO

Gain control range: 60 dB

Input frequency range: 100 MHz to 1000 MHz

Input P1dB: +12 dBm (0 dB gain)

Input IP3: + 22.5dBm (0 dB gain)

Noise factor: 11 dB (>39 dB gain), 49 dB (0 dB gain)

Baseband 1 dB bandwidth: 250 MHz (broadband mode), 50 MHz (narrowband mode)

SPI/I2C serial interface

Power Supply: + 3.3V /350 mA
