TRF371109IRGZR: RF Demodulator – 0.3GHz to 1.7GHz Wideband Integrated Direct Conversion Receiver

The TRF371109IRGZR is a high-linearity direct conversion quadrature receiver. The TRF371109IRGZR integrates balanced I and Q mixers, an LO buffer, and a phase splitter to directly convert RF signals into I and Q baseband signals. An on-chip programmable gain amplifier adjusts the output signal level without requiring external variable gain (attenuator) components. The TRF371109 incorporates a programmable baseband low-pass filter that attenuates adjacent interference, eliminating the need for external baseband filtering.

TRF371109IRGZR Product Specifications:

Function: Downconverter

LO Frequency: 300MHz to 1.7GHz

RF Frequency: 300MHz to 1.7GHz

P1dB: 3dBV

Gain: 24dB

Noise Figure: 17.5dB

Current - Supply: 360 mA

Voltage - Supply: 4.5V to 5.5V

Mounting Type: Surface Mount

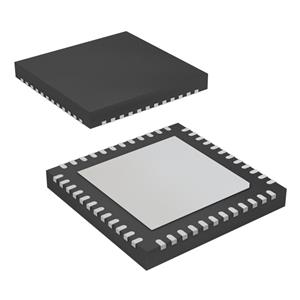

Package/Case: 48-VFQFN Bare Pad

Supplier Device Package: 48-VQFN (7x7)

TRF371109IRGZR Product Features:

Frequency Range: 300 MHz to 1700 MHz

Integrated baseband programmable gain amplifier

On-chip programmable baseband filter

Advanced link IP3: 27 dBm at 900 MHz

High IP2: 68 dBm at 900 MHz

Hardware and software power-down

Three-wire serial interface

Single-supply operation: 4.5 V to 5.5 V operating voltage

Silicon-germanium technology
