The NXP MPXH6400AC6U sensor integrates on-chip, bipolar op amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. The small form factor and high reliability of on-chip integration make this pressure sensor a logical and economical choice for the system designer.

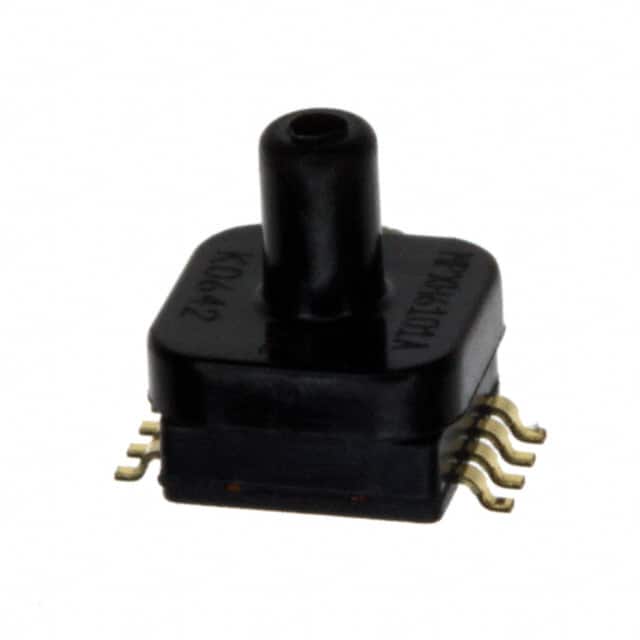

The MPXH6400AC6U piezoresistive transducer is a state-of-the-art, monolithic, signal conditioned, silicon pressure sensor. This sensor combines advanced micromachining techniques, thin film metallization, and bipolar semiconductor processing to provide an accurate, high level analog output signal that is proportional to applied pressure

Features

• Improved accuracy at high temperature

• Available in super small outline package

• 1.5% maximum error over 0 °C to 85 °C

• Fully calibrated and compensated

• Ideally suited for microprocessor or microcontroller-based systems

• Temperature compensated from -40 °C to +125 °C

• Durable thermoplastic surface mount package

• Package porting and mounting options enable tube attachment for liquefied natural gas (LPG) or remote sensing applications

Typical applications

• Fuel injected car engines

• Vehicles powered by green gases (for example LPG and CNG)

• Small engines

• Industrial controls
