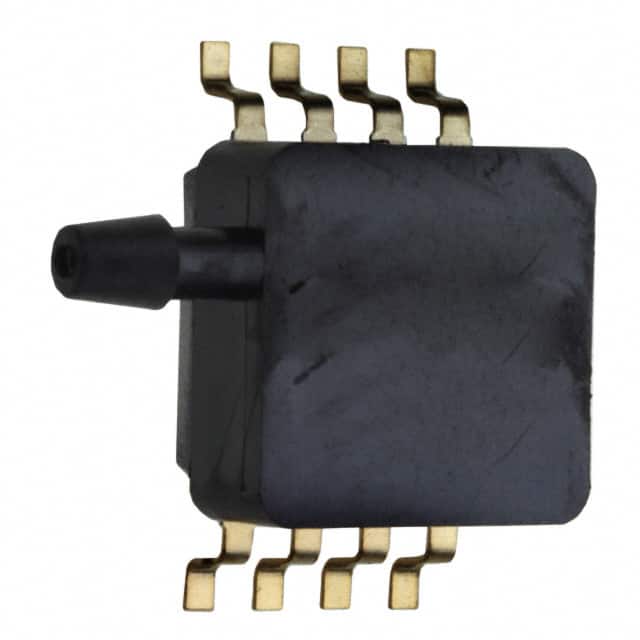

The MPXV2010GP device is a silicon piezoresistive pressure sensor that provides a highly accurate linear voltage output proportional to the applied pressure. The sensor is a monolithic silicon diaphragm with an integrated strain gauge and thin film resistor network on the chip. The chip is laser trimmed for accurate range and offset calibration and temperature compensation.

Features and Benefits

- Proportional to supply voltage

- Differential and gauge options

- 0°C to 85°C temperature compensation

- Easy-to-use chip carrier package options

Applications

- Air flow control

- Breathing diagnostics

- Controllers

- Pressure switches

Product Properties

Application: Panel Mount

Pressure Type: Exhaust Gauge

Operating Pressure: 1.45PSI (10kPa)

Output Type: Wheatstone Bridge

Output: 0mV ~ 25mV (10V)

Accuracy: ±1 per cent

Voltage - Supply: 10V ~ 16V

Port Size: Male - 0.13" (3.17mm) Tube

Port Style: Barbed

Features: Temperature Compensated

Termination Style: Gull Wing

Maximum Pressure: 10.88PSI (75kPa)

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Housing: 8-SMD, Gull Wing, Side Ported

Supplier Device Package: 8-SOP
