Trade Name:ADXL314WBCPZ
Data Manual:ADXL314WBCPZ.pdf
Brand:ADI
Particular Year:23+
Package:LFCSP-32
Delivery Date:New and Original
Stock: 2000pcs
The ADXL314WBCPZ is a ±200 g range, 13-bit resolution, 3-axis digital accelerometer. The digital output data is in 16-bit binary complement data format and can be accessed via the serial peripheral interface (SPI), 3 or 4-wire or I2C digital interfaces.
The integrated memory management system uses a 32-level first-in-first-out (FIFO) buffer to store data, thereby minimising host processor load and reducing overall system power consumption.
The low power mode supports intelligent motion-based power management for threshold sensing and motion acceleration measurements at low power consumption, typically 65 μA at 100 Hz output data rate (ODR) and VS = 2.5 V.

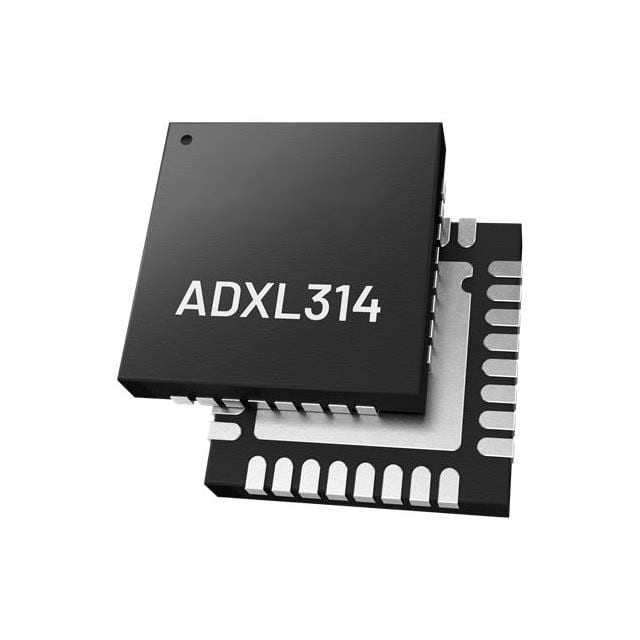

The ADXL314WBCPZ is available in a small, slim 5 mm × 5 mm × 1.45 mm, 32-pin LFCSP package.
Features
Measurement range ±200 g
Low power consumption: 170 μA in measurement mode and 17 μA in standby mode at VS = 2.5 V (typical)
User selectable bandwidth up to 3200 Hz ODR
Fixed 13-bit programmable output resolution
Supply voltage range: 2.0 V to 3.6 V
Embedded memory management system using FIFO technology to minimise host processor load
Vibration event detection
Activity/inactivity monitoring
SPI (3 or 4-wire) and I2C digital interfaces
Wide temperature range: -40 to +125°C
10,000 g shock survivability
Lead-free and RoHS compliant
Small, slim package: 32-pin 5 mm × 5 mm × 1.45 mm LFCSP
AEC-Q100 Suitable for automotive applications
Applications
Tyre and battery pack monitoring
Powerful event detection
