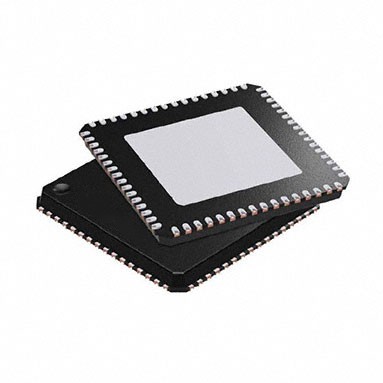

The DS90UB960WRTDRQ1 is a versatile sensor hub that collects serial sensor data received from 4 separate video streams via the FPD-Link III interface. When paired with the DS90UB953-Q1 serialiser, the DS90UB960-Q1 receives data from sensors such as imagers that support Full HD 1080p/2MP resolution at 60Hz frame rates. The received data is aggregated to an output that is MIPI CSI-2 compliant and interconnected with a downstream processor. The device is also equipped with a second MIPI CSI-2 output port to provide additional bandwidth or a second copy output for data recording and parallel processing.

The DS90UB960WRTDRQ1 includes four FPD-Link III deserialisers, each supporting connection via a cost-effective 50Ω single-ended coaxial or 100Ω differential STP cable. The receive equaliser automatically adapts to compensate for cable loss characteristics, including degradation over time.

Each FPD-Link III interface also includes a separate low-latency bi-directional control channel that continuously transmits I2C, GPIO and other control information. General purpose I/O signals, such as those required for camera synchronisation and diagnostic features, can also be utilised with this bi-directional control channel.

The DS90UB960WRTDRQ1 is AEC-Q100 compliant for automotive applications and is available in a cost effective and space saving 64-pin VQFN package.

Features

- Compliant with AEC-Q100 standard for automotive applications:

- Device temperature class 2: -40°C to +105°C ambient operating temperature range

- Quad 4.16Gbps deserialiser hub aggregates data from up to 4 sensors simultaneously

- Support for 2 megapixel sensors with Full HD 1080p resolution at 60Hz frame rate

- Accurate multi-camera synchronisation

- MIPI DPHY version 1.2/CSI-2 version 1.3 compliant

- 2 MIPI CSI-2 output ports

- Each CSI-2 port supports 1, 2, 3, 4 data channels

- CSI-2 data rate scalability: 400Mbps/800Mbps/1.2Gbps/1.5Gbps/1.6Gbps per data channel

- Port Replication Mode

- Functionally safe

- Documentation to aid in ISO 26262 system design

- Ultra-low data and control path latency

- Supports single-ended coaxial (including Power over Cable (PoC)) or shielded twisted pair (STP) cables

- Adaptive receive equalisation

- Dual I2C ports with fast mode enhancement (up to 1Mbps)

- Flexible GPIO for sensor synchronisation and diagnostics

- Compatible with DS90UB953-Q1, DS90UB935-Q1, DS90UB933-Q1, DS90UB913A-Q1 serializers

- Internal programmable precision frame synchronisation generator

- Line fault detection and advanced diagnostics

Applications

- Automotive ADAS

- Rear View Camera (RVC)

- Surround View Systems (SVS)

- Camera Monitoring Systems (CMS)

- Front View Camera (FC)

- Driver Monitoring Systems (DMS)

- Satellite radar, Time of Flight (ToF), Lidar sensor modules and sensor fusion

- Safety and Surveillance
