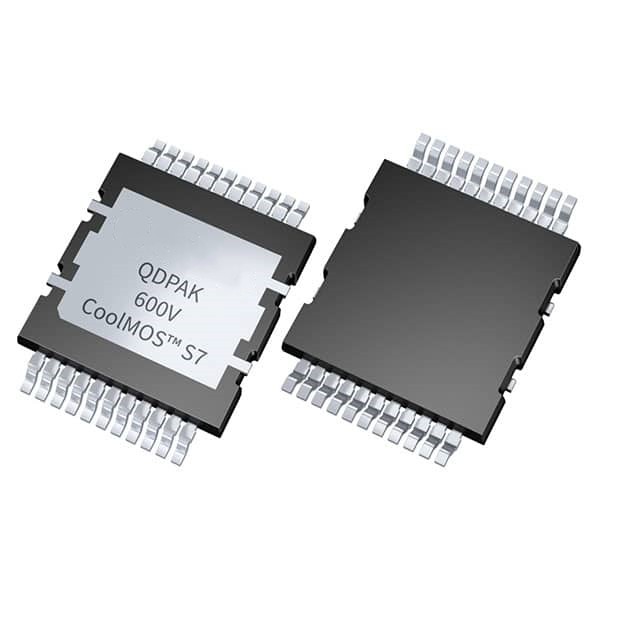

The IPQC60R040S7XTMA1 offers the best price performance for low frequency switching applications. CoolMOS™S7 offers the lowest RDS(on) value for HVSJMOSFETs, significantly improving energy efficiency.

Optimised for "static switching" and high current applications, the CoolMOS™S7 is also suitable for solid state corridor circuit breaker designs and line correction in SMPS and inverter topologies.

Features

-CoolMOS™S7 technology enables 40mΩ RDS(on) in the smallest size possible.

-Best price performance in low frequency switching applications

-High pulse current capability

-Kelvin source plugs improve switching performance at high currents

-QDPAK bottom cooling kits are MSL1 compliant and completely lead free

-QDPAK bottom cooling kit is MSL1 compliant and completely lead free, suitable for standard

-PCB assembly process for simple system integration Integration

Technical specifications

FET type: N-channel

Technology: MOSFET (metal oxide)

Drain source voltage (Vdss): 600 V

Current at 25°C - continuous drain (Id): 14 A (Tc)

Drive voltage (max Rds On, min Rds On): 12V

On-resistance (max) for different Id, Vgs: 40 milliohms @ 13A, 12V

Vgs(th) for different Id (max): 4.5V @ 790µA

Gate charge (Qg) at different Vgs (max): 83 nC @ 12 V

Vgs (max): ±20V

FET function: -

Power dissipation (max): 272W (Tc)

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting Type: Surface Mount Type

Supplier Device Package: PG-HDSOP-22

Potential Applications

-Solid state relays and circuit breakers

-Line calibration in high power/high performance applications such as computers, telecommunications, UPS and solar
