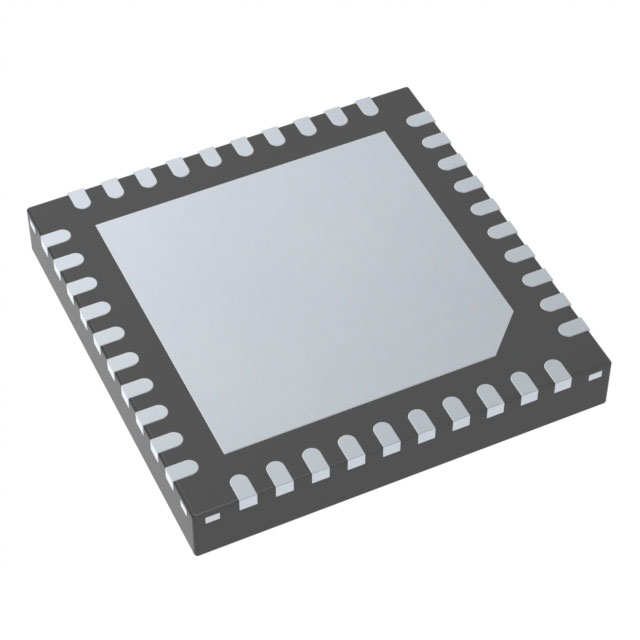

R5F523E5KDNF has an integrated 16-bit D/A converter and +/-10V high-voltage analog signal input circuit, reducing the overall bill of materials and footprint. The CPU is equipped with an RXv2 core that offers excellent digital signal processing/floating-point unit operation, which enables high-precision measurement, control, and communication on a single chip.

Feature of R5F523E5KDNF

32-bit RXv2 CPU core

Max. operating frequency: 32 MHz

Capable of 64 DMIPS in operation at 32 MHz

Enhanced DSP: 32-bit multiply-accumulate and 16-bit multiply-subtract instructions supported

Built-in FPU: 32-bit single-precision floating point (compliant to IEEE754)

Divider (fastest instruction execution takes two CPU clock cycles)

Fast interrupt

CISC Harvard architecture with 5-stage pipeline

Variable-length instructions, ultra-compact code

On-chip debugging circuit

Memory protection unit (MPU) supported

Low power design and architecture

Operation from a single 1.8-V to 5.5-V supply

Three low power consumption modes

Low power timer (LPT) that operates during the software standby state

0n-chip flash memory for code

Read cycle of31.25 ns in 32-MHz operation

No waiting time when the CPU is reading at full speed

128-Kbyte and 256-Kbyte capacities

On-board or off-board user programming

Programmable at 1.8 V

For instructions and operands

0n-chip data flash memory

8 Kbytes (,000,000 program/erase cycles (typ))

BGO (Background Operation)

0n-chip SRAM, no wait states

16- and 32-Kbyte size capacities

Data transfer functions

DMAC: Incorporates four channels

DTC: Four transfer methods
