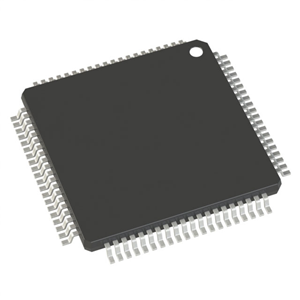

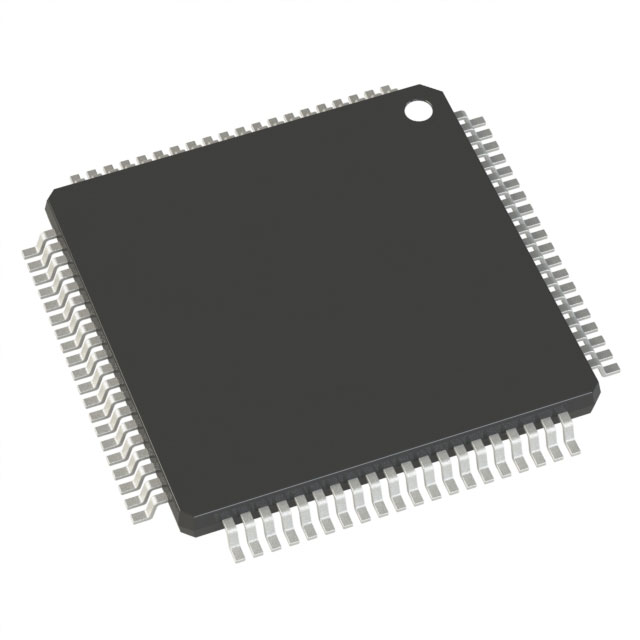

R5F523E5JGFN is 32-Bit 32MHz RX23E-B Group of microcontrollers has a built-in analog front end that is ideal for industrial sensor equipment.

Feature of R5F523E5JGFN

Analog front end (AFE)

24-bit delta-sigma A/D converter with integrated programmable gain amplifier: Up to 24-bit effective resolution, data rate 3.8SPS to 125kSPS, 4nV/°C offset drift, 1ppm/°C gain drift

5V analog inputs: Eight differential inputs, 16 single-ended inputs

±10V analog inputs: Two differential inputs, four single-ended inputs

16-bit D/A converter: DNL = ±1LSB, INL = ±5LSB

Reference voltage source: Low temperature drift of 10ppm/°C with excellent temperature stability

Excitation current source: Matched programmable current source, ideal for measuring 3-wire resistance temperature detectors

MCU component

CPU: 32-bit RXv2 core, operating frequency 32MHz, digital signal processing can be implemented with DSP instructions and FPU

Communication interface: SPI x 1 channel, UART x 7 channels, I2C x 1 channel, CAN x 1 channel

Applications of R5F523E5JGFN

Pressure Control

Displacement Measurement Using LVDT
