R5F523E6BDFM: 32-bit Microcontroller with Integrated 24-bit Delta-Sigma Analogue/Digital Converter up to 125kSPS

Model: R5F523E6BDFM

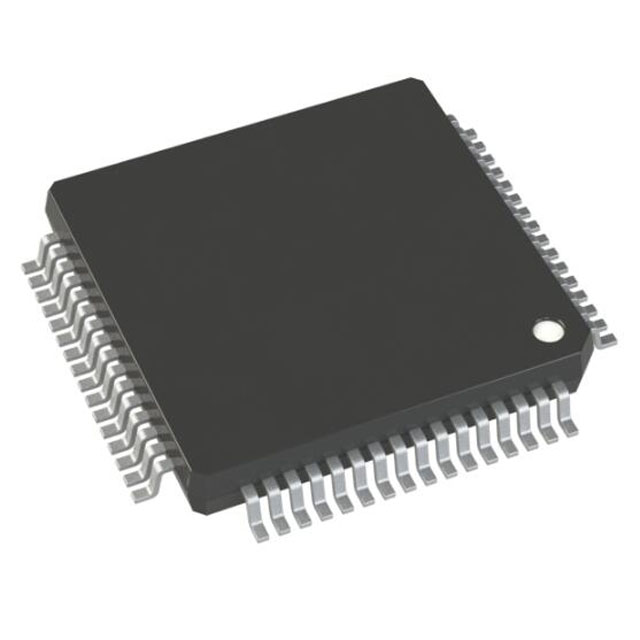

Package: LFQFP-64

Type: RX23E-B Series - 32-bit Microcontroller MCUs

The specifications of R5F523E6BDFM - RX23E-B Series 32-bit Microcontroller MCU are listed below:

Core Processor: 32-bit RXv2 core with a maximum operating frequency of 32MHz and 64 DMIPS support.

Package type: 64-pin LFQFP package.

Memory: Equipped with up to 256KB of Flash memory, and 32KB of SRAM.

A/D converter: Integrates a low noise, low drift 24-bit delta-sigma A/D converter with high speed data rates up to 125kSPS.

Other analogue features: rail-to-rail programmable gain instrumentation amplifier, ±10V input pin, low-drift voltage reference and on-chip excitation current source.

Communication interfaces: Supports a variety of communication interfaces such as SCI, RSPI, I²C, etc. for enhanced connectivity.

R5F523E6BDFM Product Features:

CPU: 32-bit RXv2 core, operating frequency 32MHz, digital signal processing through DSP instructions and FPUs.

Rich Memory: Equipped with 256KB flash memory and 32KB SRAM to meet the data storage and processing needs of complex applications.

High-precision A/D converter: Integrated 24-bit delta-sigma A/D converter with low noise and low drift characteristics and high-speed data rate up to 125kSPS.

Reference voltage source: 10ppm/°C low temperature drift performance with excellent temperature stability

Communication interfaces: SPI x 1 channel, UART x 7 channels, I2C x 1 channel, CAN x 1 channel

Enhanced analogue features: rail-to-rail programmable gain instrumentation amplifiers, ±10V input pins, etc. for improved flexibility and accuracy in analogue signal processing.
