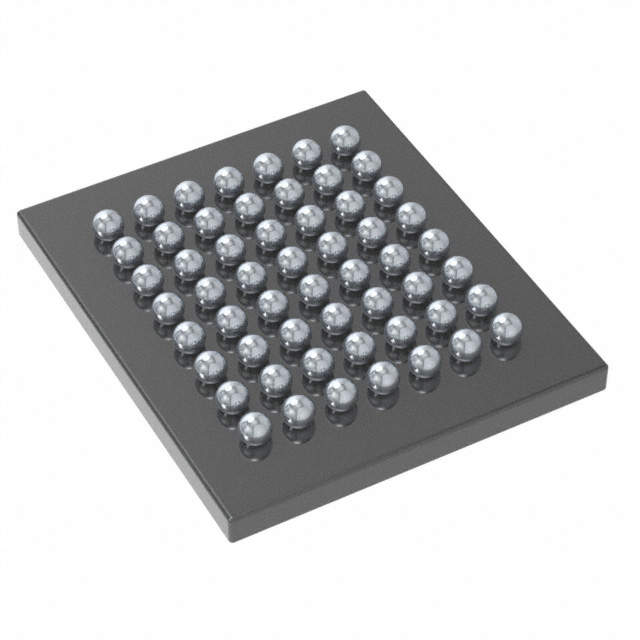

For picture reference, please see the specifications
< >

Commodity Model:AD5940BCBZ-RL

Trade Name:AD5940BCBZ-RL

Data Manual:AD5940BCBZ-RL.pdf

Brand:ADI

Particular Year:23+

Package:56-WLCSP

Delivery Date:New original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD5940BCBZ-RL
Package
56-WLCSP
Describe
IC AFE 1 CHAN 16BIT 56WLCSP

Product Description

The AD5940BCBZ-RL is a high precision, low power analog front end (AFE) designed for portable applications requiring high precision, electrochemical measurement technology. The AD5940 includes two high-precision excitation loops and a universal measurement channel, enabling various measurements of the sensor under test. The first excitation loop consists of an ultra-low-power, dual-channel output string, digital-to-analog converter (DAC), and a low-power, low-noise potentiostat.


The device provides eight general purpose inputs/outputs (GPIO) that can be controlled using an AFE timing controller, allowing for cycle precise control of multiple external sensor suites. The AD5940 uses a 2.8V to 3.6V power supply and is rated for temperatures ranging from -40°C to + 85°C. The AD5940 comes in a 3.6mm × 4.2mm WLCSP package with 56 pins.


Application:

Electrochemical measurement

Electrochemical gas sensor

Potentiostat/current measurement/voltammetry/cyclic voltammetry

Bioimpedance application

Skin impedance

Human impedance

Continuous glucose monitoring

Battery impedance


Associated Products

Model

Brand

Package

Quantity

Describe

AFE5805ZCF

TI

NFBGA-135

3000

An 8-channel low-noise analog front-end chip for ultrasonic waves

AFE5809ZCF

TI

NFBGA-135

3000

14-bit, 12-bit, 65MSPS, 158mW/CH fully integrated 8-channel ultrasonic analog front ends

AFE58JD16ZAV

TI

NFBGA-289

2500

Low-power, low-noise 16-channel ultrasonic analog front end (AFE)

AFE58JD48ZAV

TI

NFBGA-289

2500

A 12.8GB JESD204B ultrasonic AFE with 16-bit 125MSPS (ADC)

AFE5832LPZAV

TI

NFBGA-289

3000

A low-power 32-channel ultrasonic AFE with LVDS interface and CW passive mixer

AFE4410YZR

TI

DSBGA-30

3000

A low-power, ultra-small integrated AFE with FIFO function

AFE44S30YZR

TI

DSBGA-30

3000

Ultra-low power integrated analog front-end (AFE) with FIFO and SPI

AFE44I30YZR

TI

DSBGA-30

3000

Ultra-low power integrated analog front-end (AFE) with FIFO and I2C

AFE5401RGCTEP

TI

VQFN-64

2000

Quad-Channel Analog Front-End for Automotive Radar Baseband Receiver

AFE4462YBGR

TI

DSBGA-36

2000

Ultra-Small Integrated AFE for Optical Bio-Sensing
