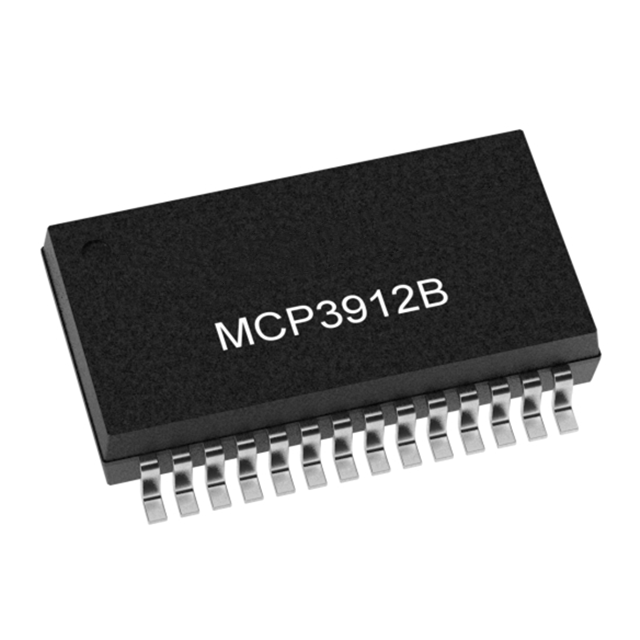

The MCP3912BA1T-E/SS is a 3V four-channel module front end (AFE). It includes four synchronous sampling Delta-Sigma analog-to-digital converters (ADCs), four PGAs, a phase delay compensation module (1μs resolution), a low drift (9ppm/°C) 1.2V internal reference voltage source, a modulator output module, and a high-speed 20 MHz SPI-compatible serial interface.

The MCP3912BA1T-E/SS can be connected to various voltage and current sensors, including shunt sensors, current transformers, Rogowner coils and Hall effect sensors.

Typical applications

Multiphase energy meter

Electric energy metering and power measurement

"Automobile

Portable instrument

Medical and power monitoring

• Audio/speech recognition

Performance parameters

Product: MCP3912BA1T-E/SS

Resolution: 24-bit

Number of channels: 4 channels

Interface type: SPI

Power supply voltage - maximum: 3.6V

Power supply voltage - minimum: 2.7V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Installation style: SMD/SMT

Packaging/Cabinet: SSOP-28

Packaging: Reel

Structure: Delta-Sigma

Trademark: Microchip Technology

Gain error: 6%

INL - integral nonlinearity: 5 PPM

Input type: Differential

Product Type: Analog Front-End - AFE

SNR - Signal-to-noise Ratio: 94 dB
