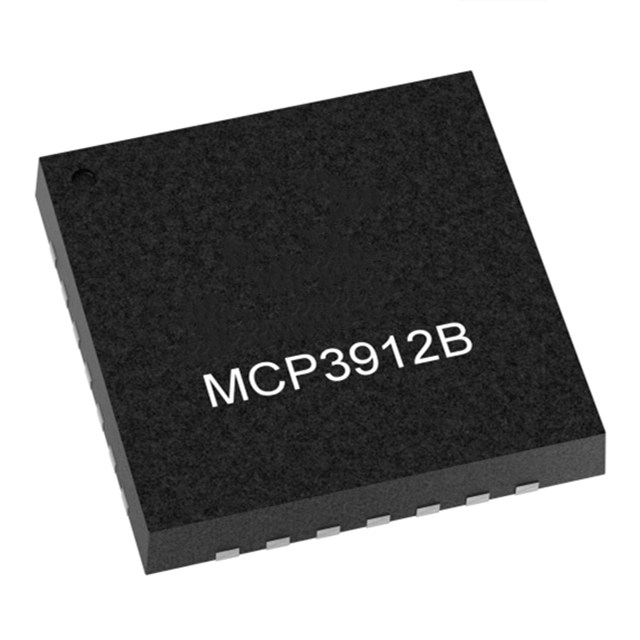

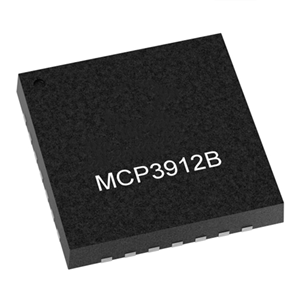

MCP3912BA1T-E/MQ is a 3V four-channel module front-end (AFE) launched by Microchip. It includes four synchronous sampling Delta-Sigma analog-to-digital converters (ADCs), four PGAs, a phase delay compensation module (1 μs resolution), a low drift (9ppm/°C) 1.2V internal reference voltage source, a modulator output module, and a high-speed 20 MHz SPI-compatible serial interface.

Core parameters

Product: MCP3912BA1T-E/MQ

Resolution: 24-bit

Number of channels: 4 channels

Interface type: SPI

Power supply voltage - maximum: 3.6V

Power supply voltage - minimum: 2.7V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Installation style: SMD/SMT

Packaging/Cabinet: QFN-28

Gain error: 6%

INL - integral nonlinearity: 5 PPM

Input type: Differential

Product Type: Analog Front-End - AFE

SNR - Signal-to-noise Ratio: 94 dB

Typical applications

Multiphase energy meter

Electric energy metering and power measurement

"Automobile

Portable instrument

Medical and power monitoring

• Audio/speech recognition
