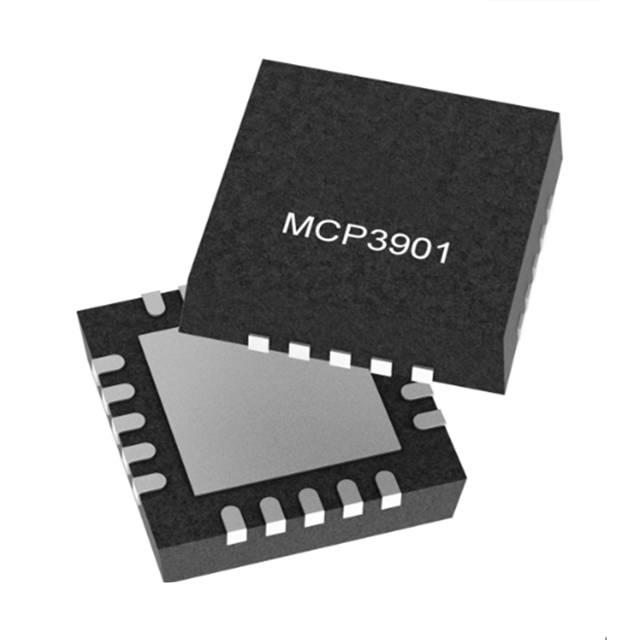

The MCP3901A0T-I/ML is a dual-channel analog front-end (AFE) that incorporates two synchronously sampled Δ-Σ analog-to-digital converters (ADCs), two PGA phase delay compensation modules, an internal reference voltage, a modulator output block, and a high-speed 20 MHZ SPI-compatible serial interface. The MCP3901A0T-I/ML incorporates a proprietary jitter algorithm that reduces idle sounds and improves THD.

Main features

Two 16/24-bit resolution Δ-ΣA/ D converters with simultaneous sampling

91 dB SINAD, -104 dBc THD, 109 dB SFDR

The programmable data rate can reach up to 64 ksps

Internal reference voltage with low drift of 12 ppm /°C

The internal PGA on each channel has a gain of 32 V/V

Phase delay compensation between channels with a resolution of 1μs

Low power consumption (14mW at 5V

It adopts a 20-pin small QFN package

Extended temperature range: -40°C to + 125°C

Typical applications

Electric energy metering

Power measurement

Automobile

Portable instrument

Medical and power supply monitoring
