Trade Name:Automotive Certified IGBTs
Brand:INFINEON
Particular Year:24+
Package:PG-TO247-3
Delivery Date:New and original
Stock: 3000pcs
The AIKQB160N75CP2 features 750V EDT2 technology, making it ideal for high-voltage automotive applications that support battery voltage up to 470V. It supports simple parallelism, system flexibility, and power scalability.
Features:
Voltage = 750 V
Current = 160 A
Suitable for 470 V VDC systems, increasing the overvoltage margin for 400 V VDC systems
Very low VCEsat = 1.4V (typical value.) At 25°C, ICnom = 160 A
Short-circuit robust tsc = 5 s, VCE = 470 V, VGE = 15 V
System Rth is reduced by up to 40% due to reflux capability and higher power output
Self-limiting current under short circuit conditions
Positive thermal conductivity and very tight parameter distribution for easy parallelism
Reduce the number of parallel devices required
Excellent current sharing performance when running in parallel
Smooth switching characteristic
Low grid charge QG
Simple grid drive design
Packaged with a fast soft recovery emitter control 3 diode
Low EMI feature

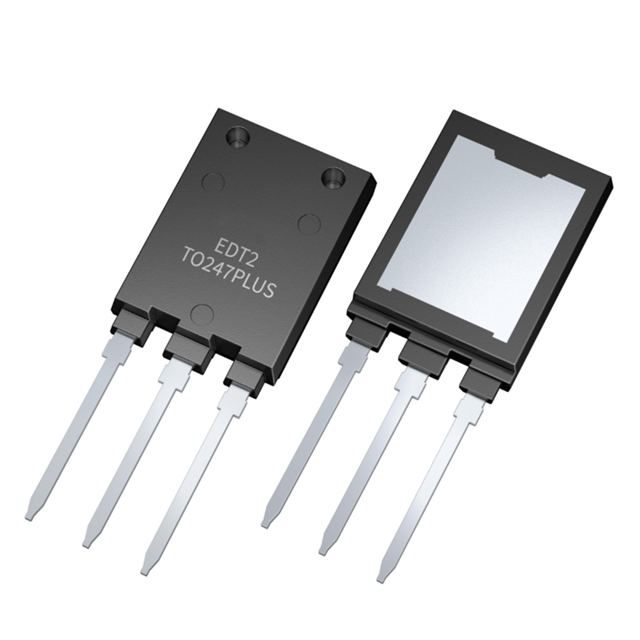

TO247PLUS package with high creepage distance
High reliability and service life
Resistance welding pins for direct bus connections
An alternative to IC = 160 A and Tc= 100 C devices
Applications:
xEV traction inverter
DC-link Discharge switch
Automobile auxiliary drive
