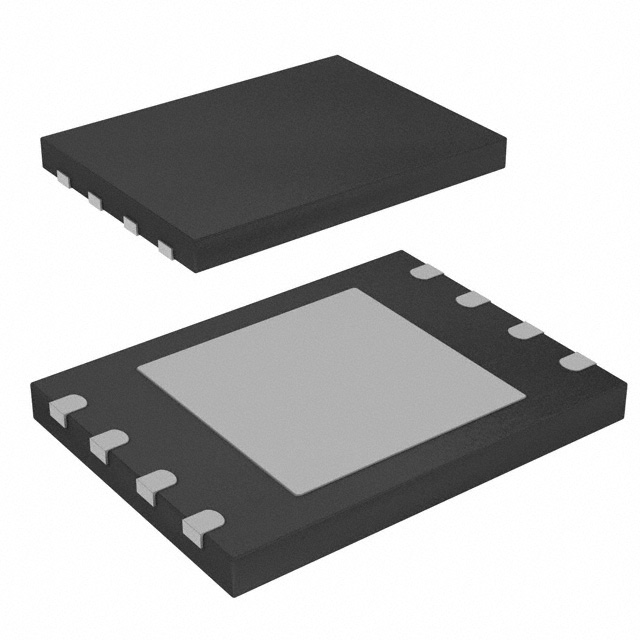

S25FS128SDSNFM100 Quad SPI flash memory chip is a high performance, low power storage solution based on a serial interface of four data lines, which can transfer multiple bits per clock cycle, thereby significantly improving data transfer rate and bandwidth .

Features Of S25FS128SDSNFM100

• Serial peripheral interface (SPI)

- SPI clock polarity and phase modes 0 and 3

- Double data rate (DDR) option

- Extended addressing: 24- or 32-bit address options

- Serial command subset and footprint compatible with S25FL-A, S25FL-K, S25FL-P, and S25FL-S SPI families

- Multi I/O command subset and footprint compatible with S25FL-P, and S25FL-S SPI families

• Read

- Commands: Normal, Fast, Dual I/O, Quad I/O, DDR Quad I/O

- Modes: Burst Wrap, Continuous (XIP), QPI

- Serial flash discoverable parameters (SFDP) and common flash interface (CFI), for configuration information

• Program

- 256- or 512-byte page programming buffer

- Program suspend and resume

- Automatic ECC – internal hardware error correction code generation with single-bit error correction

• Erase

- Hybrid sector options

• Physical set of eight 4-KB sectors and one 32-KB sector at the top or bottom of address space with all

remaining sectors of 64 KB or

• Physical set of eight 4-KB sectors and one 224-KB sector at the top or bottom of address space with all

remaining sectors of 256 KB

- Uniform sector options

• Uniform 64-KB or 256-KB blocks for software compatibility with higher density and future devices

- Erase suspend and resume

- Erase status evaluation

- 100,000 program-erase cycles, minimum

- 20 year data retention, minimum

• Security features

- One-time program (OTP) array of 1024 bytes

- Block protection:

• Status Register bits to control protection against program or erase of a contiguous range of sectors

• Hardware and software control options

- Advanced sector protection (ASP)

• Individual sector protection controlled by boot code or password

• Option for password control of read access

• Technology

- 65-nm MIRRORBIT™ technology with Eclipse architecture

• Supply voltage

- 1.7 V to 2.0 V

Application Of S25FS128SDSNFM100

S25FS128SDSNFM100 is suitable for various embedded systems that require a large amount of storage space, such as industrial control, automotive electronics, smart home and other fields. Its high durability and extensive interface support make it excel in systems that require long-term stable operation ‌.
