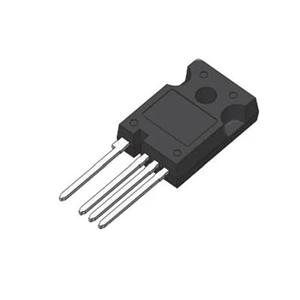

The AFGH4L25T120RWD is an AEC Q101 certified insulated gate bipolar transistor (IGBT) with a robust and cost-effective field stop VII trench structure. Youdaoplaceholder0 IGBTs offer superior performance in demanding switching applications with low on-state voltages and minimal switching losses, optimizing performance for both hard-switching and soft-switching topologies in automotive applications.

Technical Specification

The main specifications of AFGH4L25T120RWD include:

Configuration: Single

The maximum collector-emitter voltage VCEO: 1.2 kV

Collector-emitter saturation voltage: 1.37V

Maximum gate/emitter voltage: 20 V

Continuous collector current at 25 C: 50 A

Pd- Power dissipation: 416 W

Minimum operating temperature: -55 ° C

Maximum operating temperature: + 175 ° C

Series: AFGH4L25T120RWD

Package/Box: TO-247-4

Installation style: Through Hole

The maximum continuous current Ic at the collector: 25 A

Gate-emitter leakage current: 400 nA

Application field

Youdaoplaceholder0 is widely used in the following fields:

PTC heaters for hybrid and pure electric vehicles

Electric compressors for hybrid vehicles and pure electric vehicles

OBC
