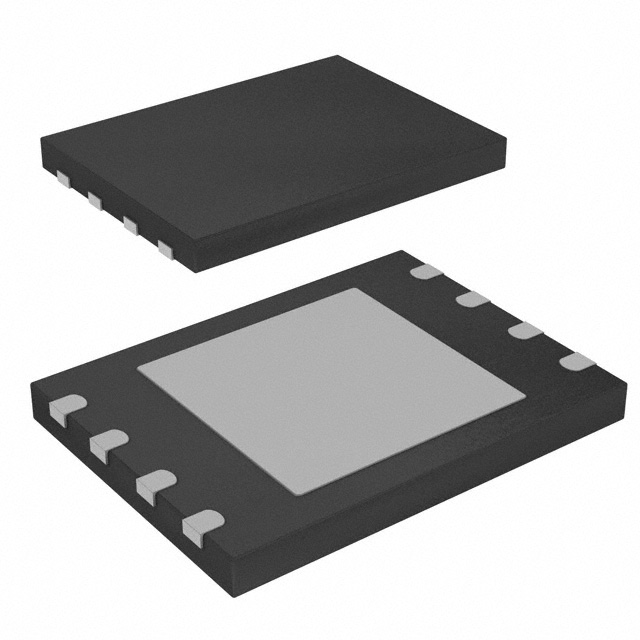

S25FS512SAGNFM010 is a high-performance NOR memory chip with a storage capacity of 512MBIT, supporting multiple serial interfaces and advanced data protection functions.

Features Of S25FS512SAGNFM010

• Serial peripheral interface (SPI) with multi-I/O

- SPI clock polarity and phase modes 0 and 3

- Double data rate (DDR) option

- Extended addressing: 24- or 32-bit address options

- Serial command subset and footprint compatible with S25FL-A, S25FL-K, S25FL-P, and S25FL-S SPI families

- Multi I/O command subset and footprint compatible with S25FL-P, and S25FL-S SPI families

• Read

- Commands: Normal, Fast, Dual I/O, Quad I/O, DDR Quad I/O

- Modes: Burst wrap, continuous (XIP), QPI

- Serial flash discoverable parameters (SFDP) and common flash interface (CFI) for configuration information

• Program

- 256 or 512 bytes page programming buffer

- Program suspend and resume

- Automatic error checking and correction (ECC) – Internal hardware ECC with single bit error correction

• Erase

- Hybrid sector option

• Physical set of eight 4-KB sectors and one 224-KB sector at the top or bottom of address space with all

remaining sectors of 256-KB

- Uniform sector option

• Uniform 256-KB blocks

- Erase suspend and resume

- Erase status evaluation

• Cycling endurance

- 100,000 program-erase cycles, minimum

• Data retention

- 20 year data retention, minimum

• Security features

- One time program (OTP) array of 1024 bytes

- Block protection:

• Status Register bits to control protection against program or erase of a contiguous range of sectors.

• Hardware and software control options

- Advanced sector protection (ASP)

• Individual sector protection controlled by boot code or password

• Option for password control of read access

• Technology

- 65-nm MIRRORBIT™ technology with Eclipse architecture

• Supply voltage

- 1.7 V to 2.0 V

Applications Of S25FS512SAGNFM010

Airbag control system ‌

Vehicle gateway ‌

Multi-purpose camera ‌‌

Car dashboard ‌

Domain controllers for ADAS and autonomous driving ‌‌
