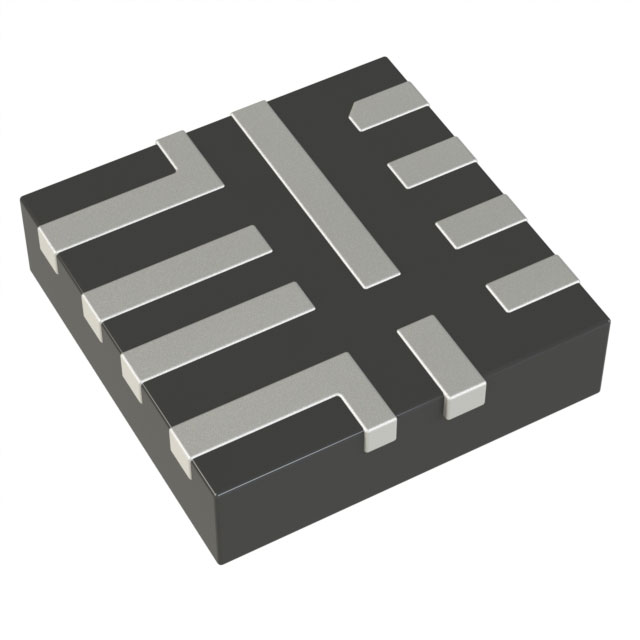

The MAX86150EFF+T is a biosensor module that integrates optoelectronic volume pulse wave method and electrocardiogram for mobile health applications. Devices include internal leds, photodetectors, and low noise electronic circuits with ambient light suppression.

The MAX86150 operates at a 1.8V power supply voltage, with internal leds using a separate power supply. Module communication is fully compatible with the standard I2C interface. The module can be turned off by software, and the standby current is close to zero, allowing the power rail to maintain power supply all the time.

Advantages and characteristics:

Optimized electrocardiogram (ECG) for dry electrode manipulation

Reflex heart rate monitor and medical grade pulse oximeter

Small, 3.3mm x 5.6mm x 1.3mm, 22-pin optical module

Optical grade glass to achieve long-term optimum and stable performance

Enable mobile devices to operate at very low power consumption

Ultra-low turn-off current (0.7μA, typical)

High SNR and reliable ambient light elimination

Operating temperature range from -40°C to +85°C

Application:

Auxiliary fitness equipment

Smart phone

Tablet computer

Wearable device

• 1.Is the inventory and price seen on the platform accurate?

  A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

• 2.Are all our products genuine?

  A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

• 3.Can you provide the qualification certificate of the original factory or agent?

  A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

• 4.Can I make an inquiry through the company's website?

  A: You can inquire through the website, or by phone and email.

• 5.When can I deliver the goods after placing an order? How long will it take to get there?

  A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

• 6.Can the company issue an invoice?

  A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
