Instructions:

The Texas Instruments TMS320VC5410A fixed-point digital signal processor (DSP) is based on an advanced and modified Harvard architecture with one program memory bus and three data memory buses. The processor provides a highly parallel arithmetic logic unit (ALU), application-specific hardware logic, on-chip memory, and other on-chip peripherals.

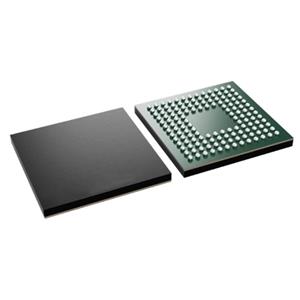

Product: TMS320VC5410AGWS16

Core: C54x

Clock frequency: 160MHz

Package: NFBGA-144

Features:

Advanced Multibus architecture with three separate 16-bit data memory buses and one program memory bus

A 40-bit arithmetic logic unit (ALU) consisting of a 40-bit barrel shifter and two separate 40-bit accumulators

17-× 17-bit parallel frequency multiplier coupled to a 40-bit private network extender for non-pipelined single-cycle multiply/add (MAC) operations

Compare, Select, and store units (CSSUs) to add/compare Viterbi operators' selections

Index encoder, used to calculate the index value of the 40-bit accumulator value in one cycle

Two address generators with eight secondary registers and two secondary register algorithm units (ARAU)

A data bus with a bus bracket function

Extended addressing mode for 8M x 16-bit maximum addressable external program space

64K x 16-bit on-chip RAM, inclusive

Eight 8K x 16-bit on-chip dual-access program/data RAM blocks

16K x 16-bit on-chip ROM, configured for program memory

Enhanced External Parallel Interface (XIO2)

Single instruction repetition and block repetition operations for program code

Block-memory-move instructions for better programming and data management

Instruction with 32-bit long word operand

An instruction read with two or three operands

Arithmetic instruction with parallel storage and parallel load

Conditional storage instruction

Interrupt quick return

On-chip peripherals

Software programmable wait state generator and programmable group switching

Programmable on-chip phase-locked loop (PLL) clock generator with internal oscillator or external clock source

A 16-bit timer

6-channel Direct Memory access (DMA) controller

Three multi-channel buffered serial Ports (McBSP)

8/16 bit Enhanced Parallel Host Port Interface (HPI8/16)

Power control with IDLE1, IDLE2, and IDLE3 instructions with power down mode

CLKOUT Turns off control to disable CLKOUT

Scan-on-chip based simulation logic, IEEE Std 1149.1 (JTAG) Boundary Scan logic

144 Pin Ball Grid Array (BGA) (GGU suffix)

144 Pin Thin Square Flat Package (LQFP) (PGE suffix)

6.25ns single-cycle fixed-point instruction execution time (160 MIPS)

8.33ns single-cycle fixed-point instruction execution time (120 MIPS)

3.3V I/O supply voltage (160 and 120 MIPS)

1.6V core supply voltage (160 MIPS)

1.5V core supply voltage (120 MIPS)
