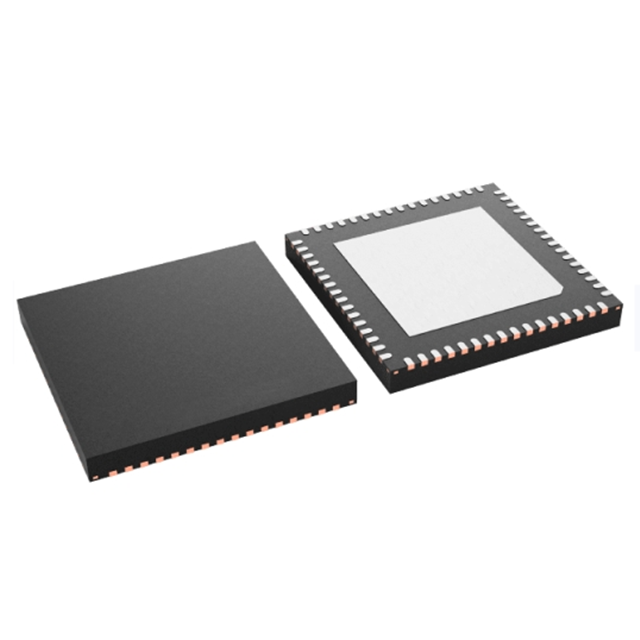

The LMK5B33414RGCR device is a 14-way output with an integrated 2.5GHz bulk acoustic wave VCO, three DPLLS, and an APLL network synchronizer.

The network synchronizer integrates three DPLLS to provide interruption-free switching and jitter attenuation over programmable loop bandwidth without the need for an external loop filter for greater flexibility and ease of use. Each DPLL phase locks the paired APLL to the reference input.

Features of LMK5B33414RGCR:

• Ultra-low jitter Ethernet clock based on BAW VCO

- When the frequency is 312.5MHz, the typical value of RMS jitter is 42fs, and the maximum value is 60fs

- When the frequency is 156.25MHz, the typical value of RMS jitter is 47fs and the maximum value is 65fs

Three high-performance digital phase-locked loops (DPLL) are paired with analog phase-locked loops (APLL)

- Programmable DPLL loop bandwidth ranges from 1mHz to 4kHz

- DCO frequency adjustment step < 1ppt

• 4 differential or single-ended DPLL inputs

- 1Hz (1PPS) to 800MHz input frequency

- Digital hold and uninterrupted switching

14 differential outputs in programmable HSDS/LVPECL, LVDS and HSCL output formats

- When 6 LVCMOS frequency outputs and 12 differential outputs are configured on OUT0_P/N, OUT1_P/N, GPIO1, and GPIO2, the maximum total frequency output is 18

- Supports programmable swing and common-mode output frequencies from 1Hz (1PPS) to 1250MHz

- Meets PCIe Generation 1 to 6 standards

• I2C or 3-wire / 4-wire SPI interface
