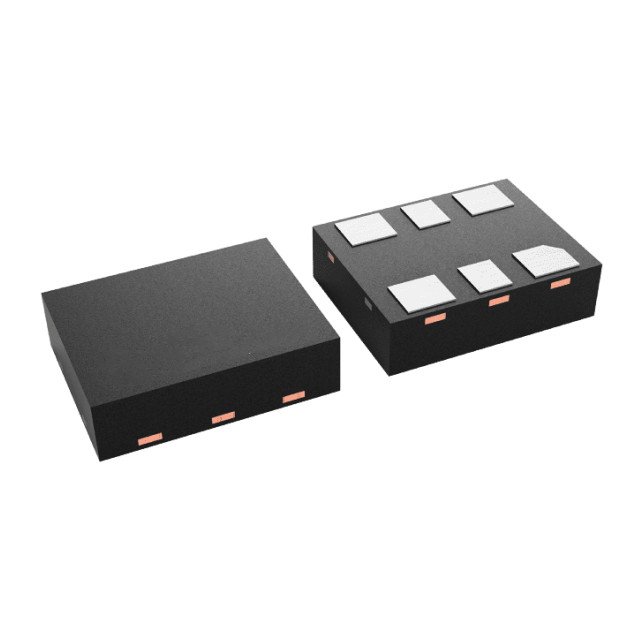

The LMK6DA12288ADLER is a low jitter, high performance, bulk acoustic wave (BAW) fixed frequency LVDS oscillator.

Instructions

Texas Instruments' (TI) Bulk acoustic wave (BAW) is a microresonator technology that enables the direct integration of high-precision BAW resonators into packages with ultra-low jitter clock circuits. Like other silicon-based manufacturing processes, BAW is designed and manufactured entirely at TI's facilities.

Specifications of LMK6DA12288ADLER:

Product type: Standard Oscillators

Package/housing: VSON-6

Frequency: 122.88MHz

Frequency stability: 25 PPM

Load capacitance: 2 pF

Supply voltage - Minimum: 2.37V

Power supply voltage - Max: 3.5V

Output format: LVDS

End type: SMD/SMT

Minimum operating temperature: -40 °C

Maximum operating temperature: + 85°C

Length: 3.2mm

Width: 2.5mm

Height: 1 mm

Series: LMK6D

Package: Reel

Encapsulation: Cut Tape

Trademark: Texas Instruments

Duty cycle - Max: 55%

Working power supply voltage: 2.5V, 3.3V
