The LMK61E0-155M device is a 155.52MHz, LVPECL ±25ppm, ultra-low jitter standard differential oscillator produced by (TI). Its internal power regulation function provides excellent power ripple suppression (PSRR), reducing the cost and complexity of the power supply network. The LMK61E0-155M is powered by a single 3.3V ± 5% power supply.

Main characteristics

Ultra-low noise and high performance

Jitter: The typical value when Fout > 100MHz is 90fs RMS

PSRR: -70dbc, with powerful power supply noise immunity

Supported output formats

LVPECL can reach up to 1 GHz

LVDS can reach up to 900 MHz

The HSTL can reach up to 400 MHz

Total frequency tolerance: ±50ppm(LMK61X2) and ± 25ppm (LMK61X0)

3.3V working voltage

Industrial temperature range (-40 ° C to +85 ° C)

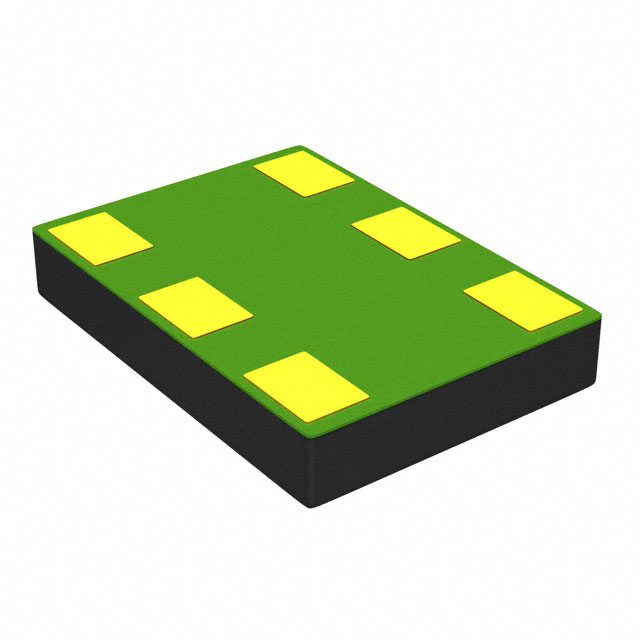

7mm × 5mm 6-pin package, compatible with the industry standard 7050 XO package pins

Application field

The LMK61E0-155M is suitable for various applications that require high-precision clock signals, including but not limited to:

• High performance alternatives to crystal oscillators, SAW oscillators or chip oscillators

• Switches, routers, network cards, baseband devices (BBU), servers, storage /SAN

• Testing and measurement

• Medical imaging

• FPGA, processor connection
