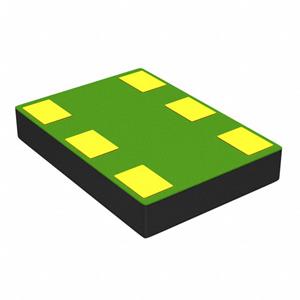

The LMK61E0-156M is an ultra-low jitter oscillator that can generate commonly used reference clocks. This device is pre-programmed before leaving the factory and supports any reference clock frequency. The supported output formats include LVPECL (up to 1GHz), LVDS (up to 900MHz), and HCSL (up to 400MHz). The internal power regulation function provides excellent power ripple suppression (PSRR), reducing the cost and complexity of the power supply network. This device is powered by a single 3.3V ± 5% power supply.

Key parameters

Product: LMK61E0-156M

Type: Standard Oscillator

Frequency: 156.25 MHz

Frequency stability: 25 PPM

Load capacitance: 2 pF

Power supply voltage - minimum: 3.135V

Power supply voltage - Maximum: 3.465V

Output format: LVPECL

Termination type: SMD/SMT

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Packaging/Box: QFM-6

In addition, the LMK61E0-156M oscillator is suitable for various electronic devices that require high-precision clock signals, including but not limited to communication equipment, test instruments, industrial control systems, and data centers, etc. Its ultra-low jitter feature makes it outstanding in applications demanding strict time synchronization and signal integrity ‌.
