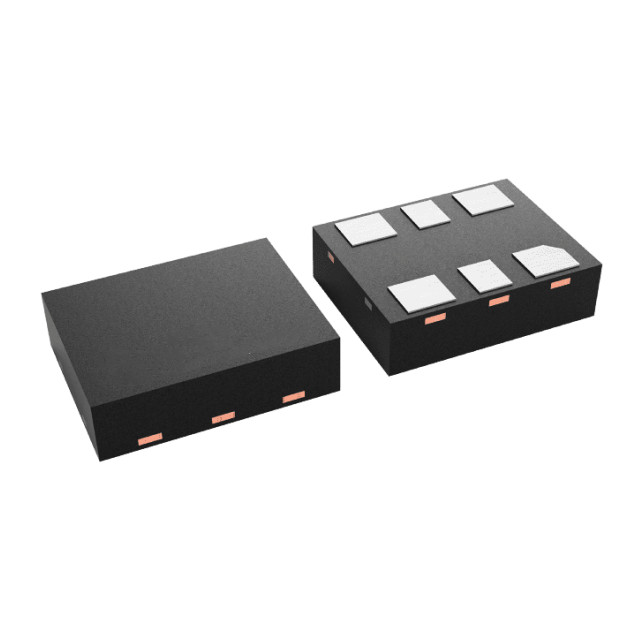

The LMK6DA05184ADLER is a low jitter, high performance, bulk acoustic wave (BAW) fixed frequency LVDS oscillator. The device is factory programmed for specific operating modes, including frequency, voltage, output type, and functional pins.

Specifications of LMK6DA05184ADLER:

Product type: Standard Oscillators

Package/housing: VSON-6

Frequency: 51.84MHz

Frequency stability: 25 PPM

Supply voltage - Minimum: 2.37V

Power supply voltage - Max: 3.5V

Output format: LVDS

End type: SMD/SMT

Minimum operating temperature: -40 °C

Maximum operating temperature: + 85°C

Length: 3.2mm

Width: 2.5mm

Series: LMK6D

Trademark: Texas Instruments

Current rating: 96 mA

Duty cycle - Max: 55%

Working power supply voltage: 2.5V, 3.3V

Applications

• 56G/112G PAM4 clock

• 100G/200G/400G/800G fiber transmission network and coherent optical components

• Network equipment, switches, routers, line cards, SAN, data centers, and baseband units (BBUS)

• Reference clocks that comply with PCIe Generation 1 to 6 standards

• Industrial applications

• Test and measurement

• ASIC, FPGA, MCU reference clock

• High-performance crystal oscillator alternatives
