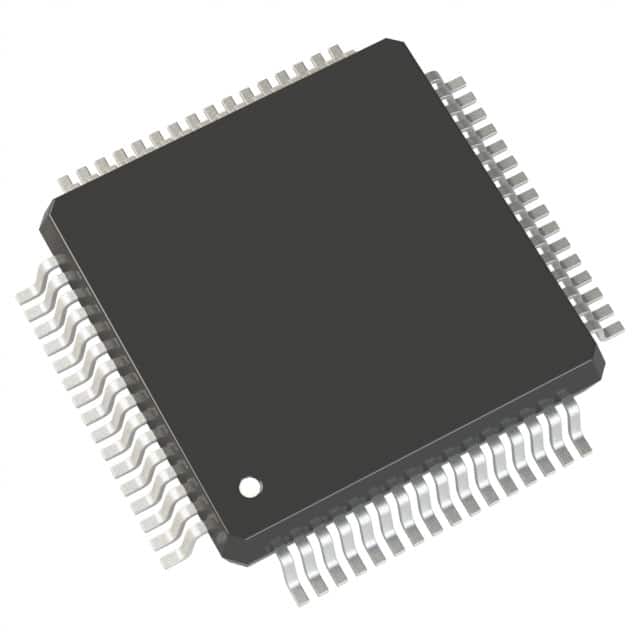

Trade Name:STM32G441RBT6
Data Manual:STM32G441RBT6.pdf
Brand:ST
Particular Year:23+
Package:64-LQFP
Delivery Date:New original
Stock: 3000pcs
The STM32G441RBT6 device is a microcontroller based on a high-performance ARM® Cortex®-M4 32-bit RISC kernel in a 64-pin LQFP package with operating frequencies up to 170MHz. The Cortex-M4 core uses a single-precision floating-point unit (FPU) that supports all Arm single-precision data processing instructions and all data types. It also implements a complete set of DSP(digital signal processing) instructions and a memory protection unit (MPU) to improve the security of applications.
Product specifications:
Core processor: ARM® Cortex®-M4
Kernel specifications: 32-bit single-core
Speed: 170MHz
Connection capacity: CANbus, I²C, IrDA, LINbus, SAI, SPI, UART/USART, USB
Peripheral: undervoltage detection/reset, DMA, I²S, POR, PWM, WDT
Number of I/ OS: 52
Program storage Capacity: 128KB (128K x 8)
Program memory type: Flash
EEPROM capacity: -
RAM size: 32K x 8
Voltage-power supply (Vcc/Vdd) : 1.71V to 3.6V
Data converter: A/D 23x12b; D/A 4x12b
Oscillator type: Internal
Operating temperature: -40°C ~ 85°C (TA)
Mounting type: surface mount type
Package/case: 64-LQFP
Supplier Device package: 64-LQFP (10x10)
Basic product number: STM32G441
