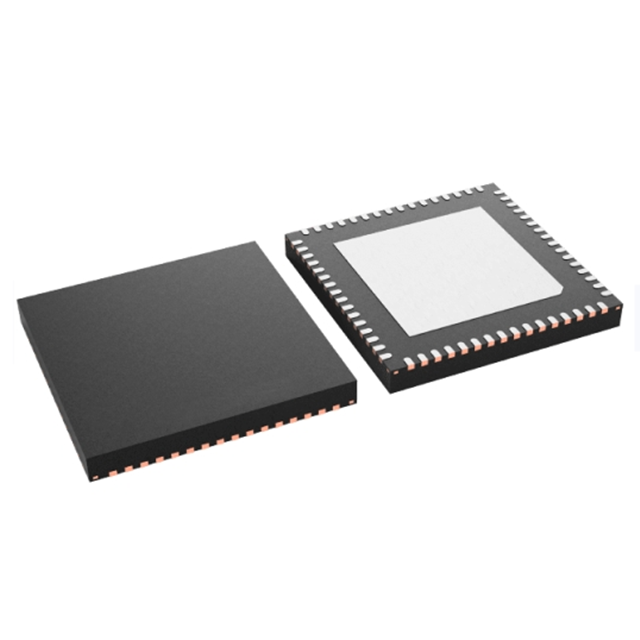

The LMK5B33216RGCR is a high-performance network synchronizer and jitter eliminator with a timing accuracy of less than 5ns (Class D) designed to meet the stringent requirements of Ethernet-based networking applications.

Features

• Ultra-low jitter Ethernet clock based on BAW VCO

- When the frequency is 312.5MHz, the typical value of RMS jitter is 42fs, and the maximum value is 60fs

- When the frequency is 156.25MHz, the typical value of RMS jitter is 47fs and the maximum value is 65fs

Three high-performance digital phase-locked loops (DPLL) are paired with analog phase-locked loops (APLL)

- Programmable DPLL loop bandwidth ranges from 1mHz to 4kHz

- DCO frequency adjustment step < 1ppt

• 2 differential or single-ended DPLL inputs

- 1Hz (1PPS) to 800MHz input frequency

- Digital hold and uninterrupted switching

• 16 differential outputs in programmable HSDS/LVPECL, LVDS and HSCL output formats

- When configured with 6 LVCMOS frequency outputs, up to a total of 20 frequency outputs

- Supports programmable swing and common-mode output frequencies from 1Hz (1PPS) to 1250MHz

- Meets PCIe Generation 1 to 6 standards

• I2C or 3-wire / 4-wire SPI interface

Applications

• Wired network

- Data center interconnection or internal interconnection

- Timing card

- Line card

- Fixed card (Pizza box)

• SyncE (G.8262), SONET/SDH (Stratum 3/3E, G.813, GR-1244, GR-253), IEEE 1588 PTP auxiliary clock

• Jitter cancellation, drift attenuation and reference clock generation for 56G/112G PAM-4 serializer/deserializer

• 100G-800G data center switches, core routers, edge routers, WLAN

• Data center and enterprise computing

- Intelligent Network Interface Card (NIC)

• Optical Transmission Network (OTN G.709)

• Broadband fixed line access

• Industry

- Test and measure

- Medical Imaging
