The MAX5719GSD is a serial-input, bufferless, 20-bit voltage-output unipolar digital/analog converter (DAC) with integrated feedback resistors to support bipolar operation with external operational amplifiers. These DACs feature low spike energy, low noise, tight bipolar resistor matching, and high accuracy.The DACs have an INL of ±4 LSB (maximum, 16-bit) over the -40°C to +105°C temperature range. Integrated high-precision setup resistors make the DAC very easy to use.The MAX5719 features a 50MHz serial interface compatible with 3-wire SPI™, QSPI™, MICROWIRE™, and DSPs.

The outputs reset to zero on power-up, providing greater safety for driving valves or other applications where the transmitter needs to be switched off on power-up.The DAC outputs are stable at 750ns with ±0.1 ppm/°C low misalignment and gain drift over the entire FSR.

Features

20-bit resolution

±4 LSB INL (maximum, 16-bit)

±0.5 LSB DNL (maximum, 16-bit)

750ns build-up time (typical)

0.05 nV-s spike energy

6 nv/√Hz output noise density

Integrated ±0.025% (max) Bipolar setup resistor

4.5V to 5.5V supply range

4.0V to VDD reference input range

DAC output reset to zero (unipolar) on power-up for increased safety

50MHz 3SPI interface

-40°C to +105°C operating temperature range

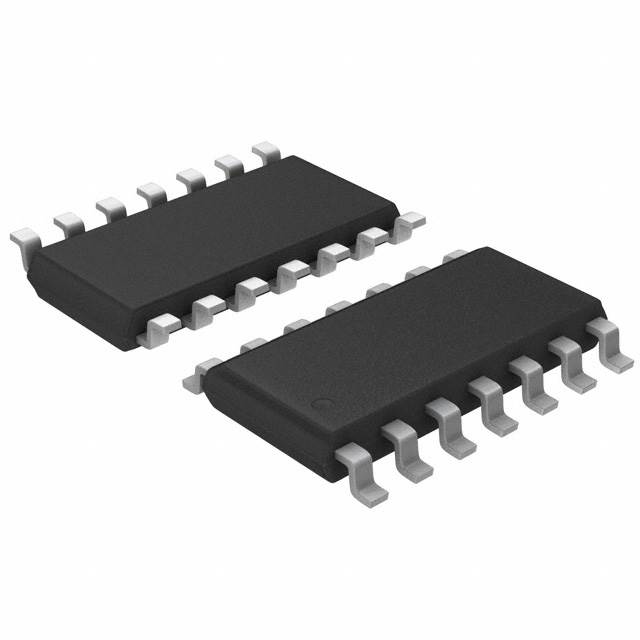

SO-14 package

Applications

Automatic test equipment

Automatic tuning

Communication systems

Data acquisition systems

Gain and Loss Adjustment

Portable Instrumentation

Process Control & Servo Loops

Programmable Voltage and Current Sources

Test and Measurement Equipment
