AD9129BBC - 14-Bit, 5.7 GSPS, RF Digital-to-Analog Converter

Part Number: AD9129BBC

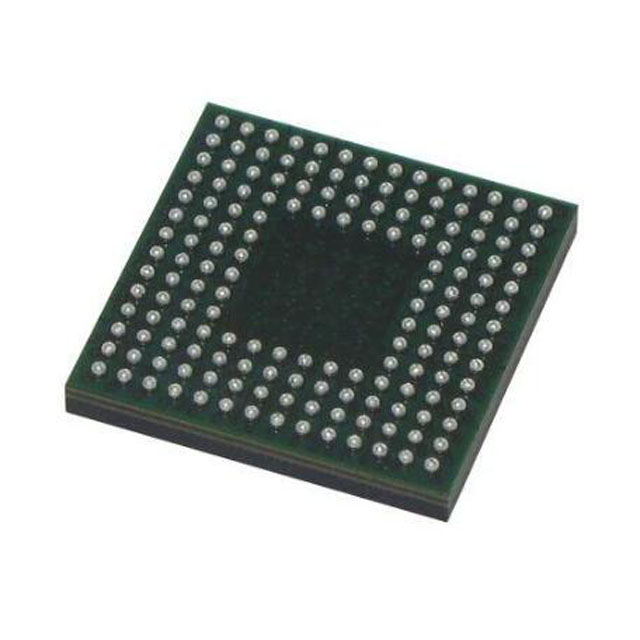

Package: BGA-160

Type: 14-Bit Digital to Analog Converters

Description: 14-Bit, 5.7 GSPS, RF Digital-to-Analog Converter

Product Overviews

AD9129BBC is high performance, 11-/14-bit RF digital-to-analog converters (DACs) supporting data rates up to 2.85 GSPS. The DAC core is based on a quad-switch architecture that enables dual-edge clocking operation, effectively increasing the DAC update rate to 5.7 GSPS when configured for Mix-Mode™ or 2× interpolation. The high dynamic range and bandwidth enable multicarrier generation up to 4.2 GHz.

Product Features

DAC update rate: up to 5.7 GSPS

Direct RF synthesis at 2.85 GSPS data rate

DC to 1.425 GHz in baseband mode

DC to 1.0 GHz in 2× interpolation mode

1.425 GHz to 4.2 GHz in Mix-Mode

Bypassable 2× interpolation

Excellent dynamic performance

Supports DOCSIS 3.0 wideband ACLR/harmonic performance

8 QAM carriers: ACLR > 65 dBc

Industry-leading single/multicarrier IF or RF synthesis

4-carrier W-CDMA ACLR at 2457.6 MSPS

Dual-port LVDS and DHSTL data interface

Up to 1.425 GSPS operation

Source synchronous DDR clocking with parity bit

Low power: 1.0 W at 2.85 GSPS (1.3 W at 5.7 GSPS)

Applications

Broadband communications systems

CMTS/VOD

Wireless infrastructure: W-CDMA, LTE, point-to-point

Instrumentation, automatic test equipment (ATE)

Radar, jammers
