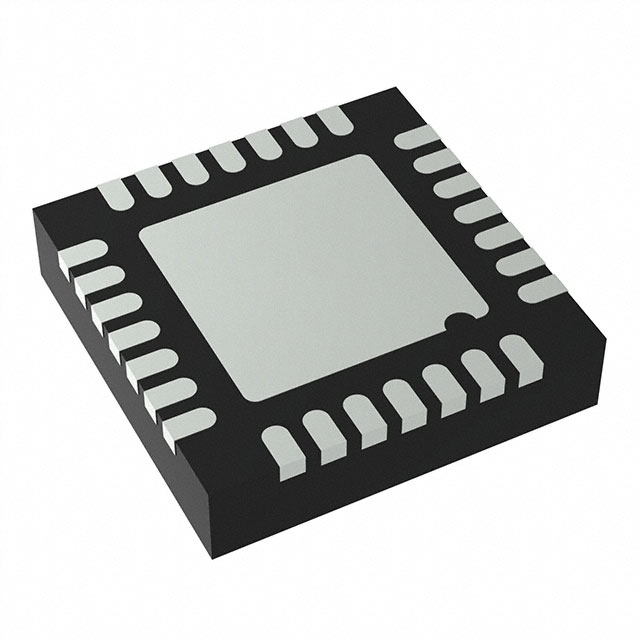

The AD5677R-1 is a low-power, 16-channel, 16-bit, buffered voltage output, digital-to-analogue converter (DAC) with a built-in 2.5 V, 2 ppm/°C internal reference voltage source (enabled by default) and a gain select pin, and a full-scale output voltage of 2.5 V (gain = 1) or 5 V (gain = 2). Powered from a single 2.7 V to 5.5 V supply, monotonicity is guaranteed by design.The AD5677R is available in a 28-pin lead-frame chip-scale package (LFCSP) with a built-in power-on reset (POR) circuit that ensures that the DAC outputs are powered up to and held at zero level until a valid write operation is performed.

Device Features

High relative accuracy (INL): 4 LSB max at ±16 bits (AD5677R only)

TUE: ±0.14% FSR (maximum)

Misalignment error: ±1.5 mV (max)

Gain error: ±0.06% FSR (max)

Low drift, 2.5 V reference Temperature coefficient of supply: 2 ppm/°C (typical)

40 mA short-circuit current

Wide operating range

Temperature range -40°C to +125°C

2.7 V to 5.5 V supply voltage range

Simplified implementation

User-selectable gain 1 or 2 (via GAIN pin)

1.8 V logic compatible

400 kHz, I2C-compatible serial interface

RoHS-compliant 28-pin 4 mm × 4 mm LFCSP package

Product Applications

Optical transceivers

Base station power amplifiers

Process control (PLC input/output cards)

Industrial automation

Data Acquisition Systems
