AD9136BCPAZ - Dual, 16-Bit, 2.8 GSPS, TxDAC+® Digital-to-Analog Converter

Part Number: AD9136BCPAZ

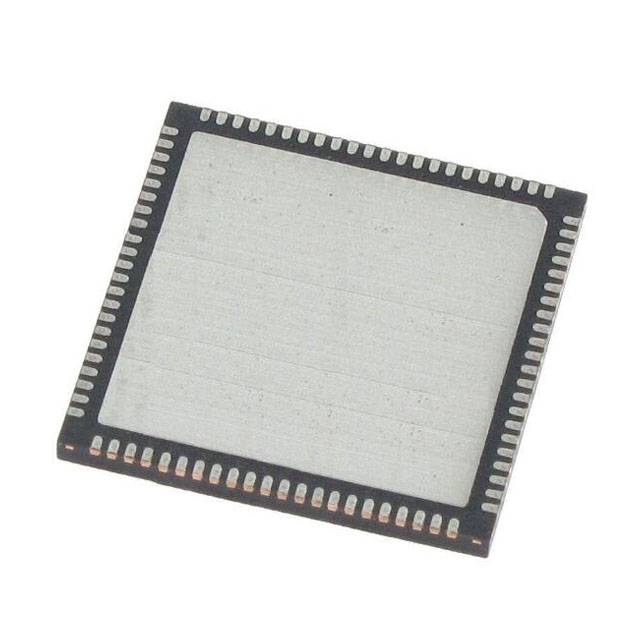

Package: LFCSP-88

Type: Digital to Analog Converters - DAC

Description: Data Conversion IC - 16-Bit Digital to Analog Converters - DAC

Product Overviews

AD9136BCPAZ is dual, 11-/16-bit, high dynamic range digital-to-analog converters (DACs) that provide a maximum sample rate of 2800 MSPS, permitting a multicarrier generation over a very wide bandwidth.

Product Features

Support input data rate >2 GSPS

Proprietary low spurious and distortion design

SFDR = 82 dBc at dc IF, −9 dBFS

Flexible 8-lane JESD204B interface

Fixed latency

Data generator latency compensation

Low power architecture

Transmit enable function allows extra power saving and instant control of the output status

High performance, low noise phase-locked loop (PLL) clock multiplier

Digital inverse sinc filter

Low power: 1.42 W at 1.6 GSPS full operating conditions

Product Highlights

Greater than 2 GHz, ultrawide complex signal bandwidth enables emerging wideband and multiband wireless applications.

Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.

Fewer pins for data interface width with a serializer/deserializer (SERDES) JESD204B eight-lane interface.

Programmable transmit enable function allows easy design balance between power consumption and wake-up time.
