TDA5235XUMA1 is a low power ASK/FSK Receiver for the frequency bands 300-320, 425-450,863-870 and 902-928 MHz. Bi-phase modulation schemes, like Manchester, bi-phasemark, bi-phase space and differential Manchester are supported.

The chip offers best-in-class sensitivity performance at a very high level of integrationand needs only a few external components.

Feature

Enhanced sensitivity receiver

Multi-band (300-320, 425-450, 863-870 and 902-928 MHz)

One crystal frequency for all supported frequency bands

21-bit Sigma-Delta Fractional-N PLL synthesizer with high resolution of 10.5 Hz

Ultrafast Wake-up on RSSI

Fast synchronization on incoming data stream typically within first 4 bits of a telegram

Selectable IF filter bandwidth and optional external filters possible

Double down conversion image reject mixer

ASK and FSK capability

Automatic Frequency Control (AFC) for carrier frequency offset compensation

NRZ data pre-processing capability

Digital base band receiver with clock synch, frame synch, format decoding and FIFO

Separate outputs for recovered data and clock

RSSI peak detectors

Wake-up generator and polling timer unit

Message ID scanning

Unique 32-bit serial number

On-chip temperature sensor

Integrated timer usable for external watch unit

Integrated 4-wire SPI interface bus

Supply voltage range 3.0 Volts to 3.6 Volts or 4.5 Volts to 5.5 Volts

Operating temperature range -40 to +105°C

ESD protection +/- 2 kV on all pins

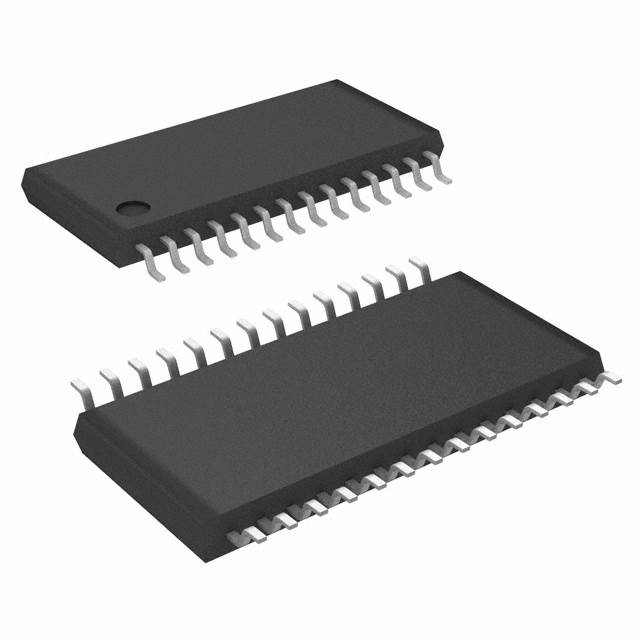

Package PG-TSSOP-28

Applications

Remote keyless entry systems

Remote start applications

Tire pressure monitoring

Short range radio data transmission

Remote control units

Cordless alarm systems

Remote metering
