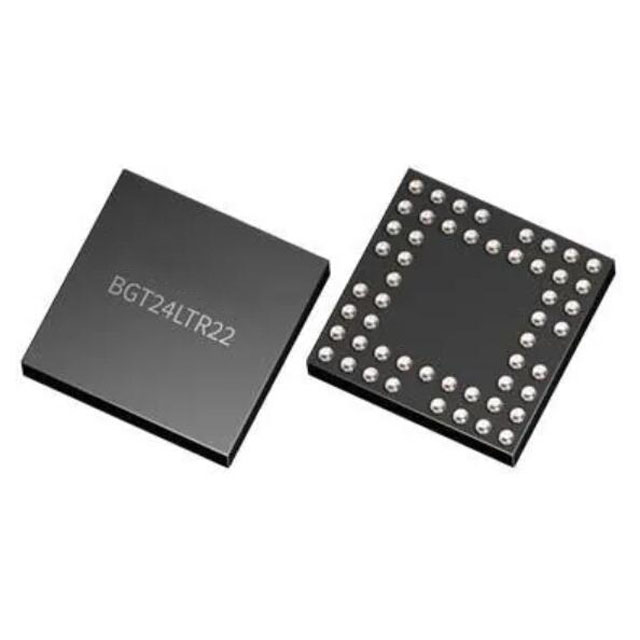

BGT24LTR22E6327XTSA1 - Low Power Multichannel 24GHz Radar MMIC for Smart Sensing Applications

Part Number: BGT24LTR22E6327XTSA1

Package: 52-WFBGA

Type: RF Transceiver IC

Description: XENSIV™ 24GHz multichannel radar sensor BGT24LTR22 for distance and angle measurement

Product Overviews

BGT24LTR22E6327XTSA1 is a low power, low noise multi-channel Silicon Germanium transceiver MMIC for 24 GHz radar applications. It provides building blocks for analog signal generation and reception, operating in the frequency range from 24.0 GHz up to 24.25 GHz. Integrated digital blocks controlling the chip are implemented in order to support radar system design.

Product Features

24 GHz transceiver MMIC (2 TX, 2 RX)

Fully integrated low phase noise VCO

Medium power amplifier with variable output power

Integrated power detectors

Homodyne low noise quadrature receivers

Configurable analog baseband amplification stages

Frequency divider

Low power consumption

Multimode operation (Master/Slave)

Fully ESD protected device

Single ended RF terminals

Single supply voltage 1.5V

Potential Applications

Smart home appliances

Drone collision avoidance

Traffic monitoring

Security applications
