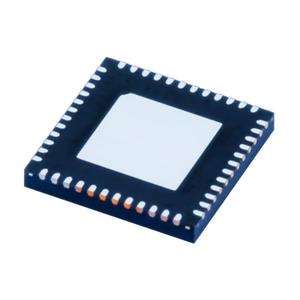

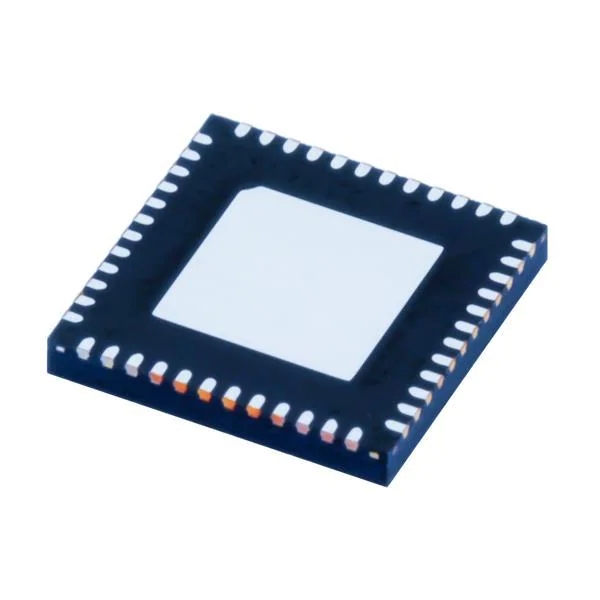

DP83869HMRGZR device is a robust, fully-featured gigabit physical layer (PHY) transceiver with integrated PMD sublayers that supports 10BASE-Te, 100BASE-TX and 1000BASE-T Ethernet protocols.

Features

Multiple operating modes

Media support: copper and fiber

Media conversion between copper and fiber

Bridge between RGMII and SGMII

Maximum ambient temperature available of 125°C

Exceeds 8-kV IEC61000-4-2 ESD

Low power consumption

< 150 mW for 1000Base-X

< 500 mW for 1000Base-T

Low RGMII latency

Total latency s 384ns for 1000Base-T

Total latency s 361ns for 100Base-TX

Time Sensitive Network (TSN) compliant

Recovered clock output for SyncE

Selectable synchronized clock output: 25 MHz and 125 MHz

SFF-8431 V4.1, 1000BASE-X and 100BASE-FX Compatible

IEEE1588 support via SFD

Wake on LAN support

Configurable I0 voltages: 1.8 V, 2.5 V, and 3.3 V

SGMII, RGMI, MII MAC interface

Jumbo frame support for 1000M and 100M speed

Cable diagnostics

Programmable RGMII termination impedance

Integrated MDI termination resistor

Fast link drop modes

Conforms to IEEE 802.3 1000Base-T, 100Base-TX, 10Base-Te, 1000Base-X, 100Base-FX

Applications

Industrial Factory Automation

Grid Infrastructure

Motor and Motion Control

Test and Measurement

Building Automation

Real-Time Industrial Ethernet Appliations such asProfiNET®
