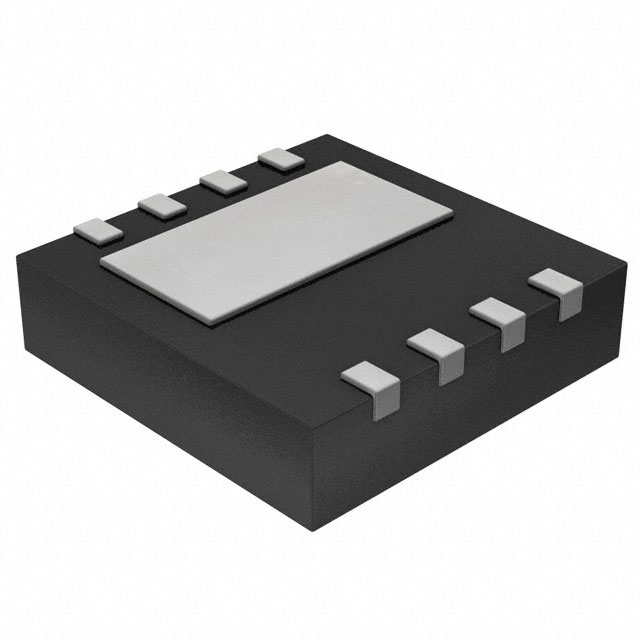

The IGLD60R190D1AUMA1 is a 600V CoolGaN™ enhanced power transistor.

Product Attributes

Product Category: MOSFETs

Technology: GaN

Mounting Style: SMD/SMT

Package / Case: LSON-8

Transistor polarity: N-Channel

Number of channels: 1 Channel

Vds-Drain-source breakdown voltage: 600 V

Id-Continuous drain current: 10 A

Rds On-drain on-resistance: 190 mOhms

Vgs - gate-source voltage: - 10 V, + 10 V

Vgs th-Gate-source threshold voltage: 900 mV

Qg-gate charge: 3.2 nC

Minimum operating temperature: - 55 C

Maximum operating temperature: + 150 C

Pd-power dissipation: 62.5 W

Channel mode: Enhancement

Fall-off time: 14 ns

Humidity Sensitivity: Yes

Product Type: MOSFET

Rise Time: 6 ns

Transistor Type: Power

Typical Off Delay Time: 8 ns

Typical Turn-On Delay Time: 6 ns

Characteristics

 Enhancement Transistor - Normally Closed Switching

 Ultra-Fast Switching

 No reverse recovery charge

 Capable of reverse conduction

 Low gate charge, low output charge

 Excellent commutation ruggedness

 Meets JEDEC standards for industrial applications (JESD47 and JESD22). Standards (JESD47 and JESD22) certified for industrial applications.

Advantages

 Improved system efficiency

 Increase power density

 Enables higher operating frequencies

 Reduces system cost

 Reduces electromagnetic interference
