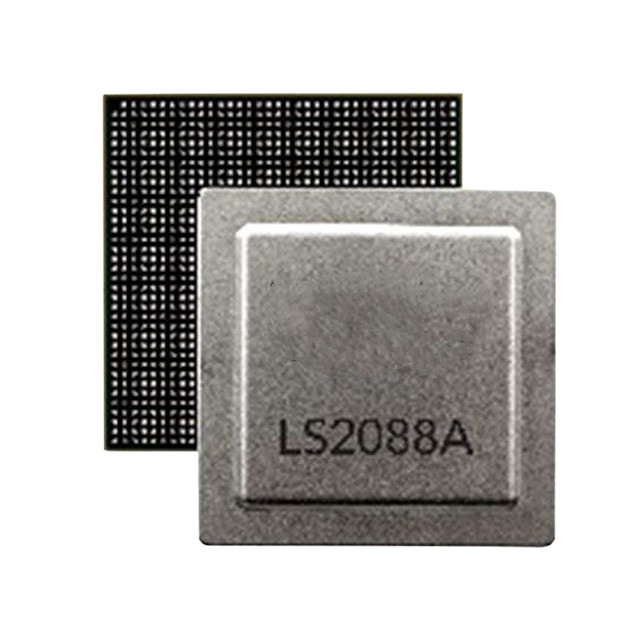

The QorIQ® LS2 family of processors delivers unprecedented performance and integration, setting the stage for smarter, more powerful networks of the future. 8-core QorIQ LS2088AXN7V1B multicore processors with Arm® Cortex®- A72 cores with advanced, high-performance datapaths and network peripheral interfaces are ideal for networking, telecom/datacom, wireless and aerospace applications. infrastructure, military and aerospace applications.

Device Properties

Product Category: Microprocessors - MPUs

Core: ARM Cortex A72

Number of Cores: 8 Core

Data bus width: 64 bit

Maximum clock frequency: 2 GHz

Package / Case: FC-PBGA-1292

L1 cache instruction memory: 48 kB

L1 cache data memory: 32 kB

Operating supply voltage: 900 mV to 1.05 V

Series: LS2088A

Mounting style: SMD/SMT

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Data RAM size: 128 kB

I/O voltage: 1.2 V, 1.8 V

Interface type: Ethernet, I2C, PCI-e, Serial, USB

L2 cache instruction/data memory: 4 x 1 MB

Memory type: DDR4 SDRAM

Humidity Sensitivity: Yes

Number of timers/counters: 4 Timer

Processor family: QorIQ Layerscape LS2088A

APPLICATIONS

Industrial control

Building Security

Surround Vision

Avionics

Motion Control and Robotics

Automotive Electronics

ADAS

V2X Communications

Communications Infrastructure

5G Packet Processing

SDN/OpenFlow™ Switching

Enterprise Access Points

Enterprise Routing

Storage Controllers

Security Appliances

Data Centre Processing

Cable Model Headend

White Box Switching

Network Function Virtualisation

Aerospace & Defence
