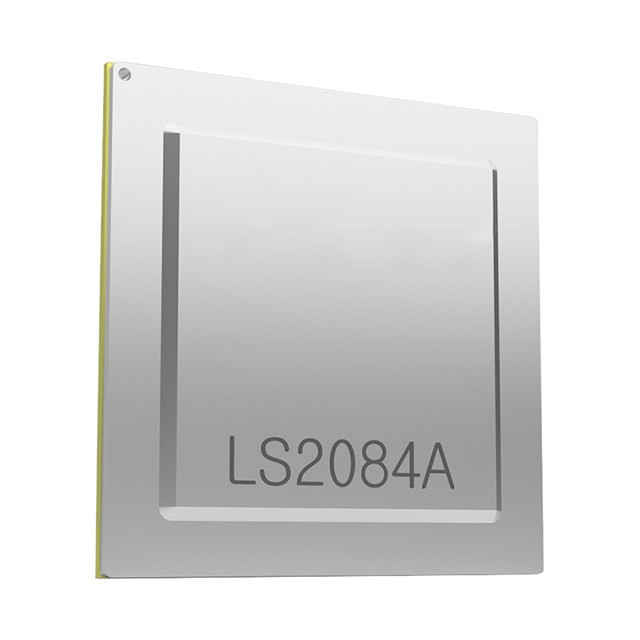

The 8-core QorIQ LS2084AXN7V1B multicore processor features an Arm® Cortex®- A72 core with advanced high-performance datapath and network peripheral interfaces for networking, telecom/datacom, wireless infrastructure, military and aerospace applications.

Features

8 64-bit ARM Cortex-A72 CPUs

Up to 2 GHz

Two cores in each group share a 1 MB L2 cache

1 MB L3 platform cache

Two 64-bit DDR4 SDRAM memory controllers

ECC and interleaved access support

Up to 2.1 GT/s

Wire-speed I/O processor with the following features:

8x 10 GbE

8x 1 GbE

L2 switching on Ethernet interfaces

XAUI/XFI/KR and SGMII

MACSec, up to four 1/10 Gb Ethernet

Two SATA 3.0

4x PCIe Gen 3 controllers

SR-IOV support, root complex

20 Gb/s SEC encryption acceleration

10 Gb/s pattern matching engine

20 Gb/s data compression engine

4 PCIe controllers (Gen3) supporting 1x8, 4x4, 4x2, 4x1 lane configurations

Product Specifications

Family: QorIQ® Layerscape

Core Processor: ARM® Cortex®-A72

Cores/Bus Width: 8-core, 64-bit

Speed: 2.0GHz

RAM Controller: DDR4

Ethernet: 10GbE (8) or 1GbE (16) and 2.5GbE (1)

SATA: SATA (2)

USB: USB 3.0 (2) + PHY

Operating Temperature: -40°C ~ 105°C

Security Features: Security Sheath, TrustZone®

Mounting Type: Surface Mount

Package/Housing: 1292-BFBGA, FCBGA

Supplier Device Package: 1292-FCPBGA (37.5x37.5)
