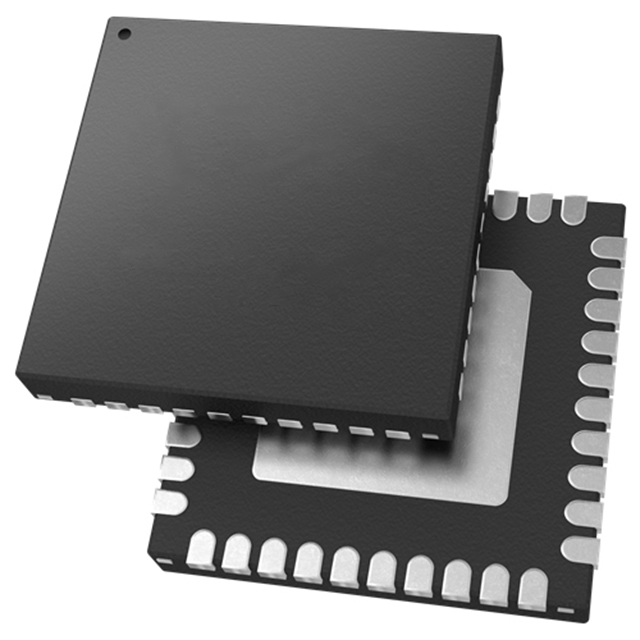

ADIN1100CCPZ is a low power, single port, 10BASE-T1L transceiver designed for industrial Ethernet applications and is compliant with the IEEE® 802.3cg-2019™ Ethernet standard for long reach 10Mbps single pair Ethernet .

Features

10BASE-T1L IEEE Standard 802.3cg-2019 compliant

Cable reach up to 1700 m with 1.0 V p-p and 2.4 V p-p

Supports 1.0 V p-p and 2.4 V p-p transmit levels

Supports intrinsic safety applications

Low power consumption: 39 mW (dual supply, 1.0 V p-p)

Cable fault detection with TDR

Link quality indicator with MSE

Frame generator and checker

Multiple loopback modes

IEEE test mode support

MII, RMII, and RGMII MAC interfaces

MDIO management interface

Unmanaged configuration using pin strapping

25 MHz crystal or external clock input (50 MHz for RMII)

Single or dual supply with 1.8 V or 3.3 V operation

3.3 V, 2.5 V, or 1.8 V MAC interface VDDIO supply

Integrated power supply monitoring and POR

Applications

Process control

Factory automation

Building automation

Field instruments and switches
