Trade Name:MAX22515ATG
Brand:ADI
Particular Year:23+

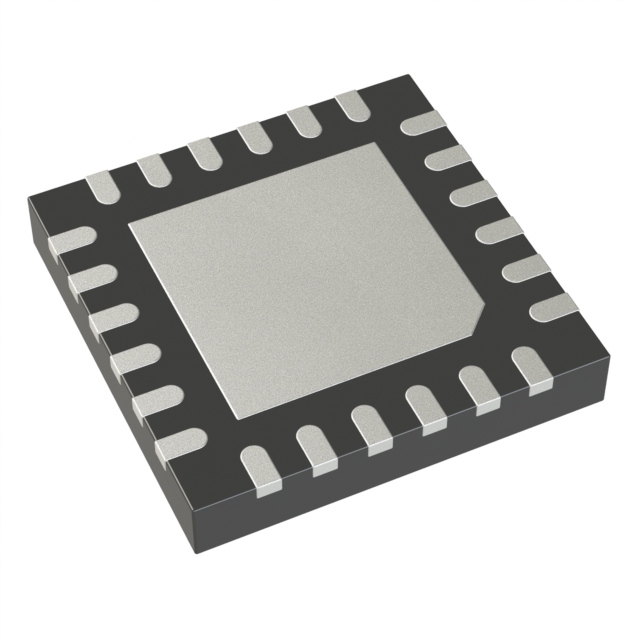

Package:24-WFQFN
Delivery Date:New and Original
Stock: 3000pcs
MAX22515ATG low-power industrial transceiver can operate as either an IO-Link device or an IO-Link master transceiver in industrial applications.
Features
High Configurability and Integration Reduces SKU
Operates from 8V to 36V
Auxiliary Digital Input (DI)
I2C or Pin Mode Control
Selectable C/Q Driver Current: 50mA to 250mA
Selectable C/Q Driver Slew Rate (I2C Mode)
Integrated Oscillator for IO-Link Communication
IO-Link Wake-Up Detection and Wake-Up
Integrated Linear Regulators: 3.3V and 5V
Compatible Register Set to MAX22513
Able to Communicate at COM1, COM2, and COM3Data Rates
Integrated Protection Enables Robust Systems
±1.2kV/500Ω Surge Protection on V24, C/Q, DI, andGND
Reverse Polarity Protection on V24, C/Q, DI, andGND
Hot-Plug Protection on Supply Input (V24)
Glitch Filters for Improved Burst Resilience
Selectable Driver Overcurrent Configuration
-40°C to +125°C Operating Temperature Range
Fast Demagnetization of Inductive Loads
Applications
IO-Link Sensor and Actuator Devices
Industrial Sensors
IO-Link Masters
