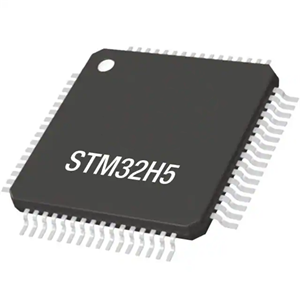

The STM32H503RBT6 devices are a high-performance microcontrollers family (STM32H5 Series) based on the high-performance Arm® Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 250 MHz.

The Cortex®-M33 core features a single-precision floating-point unit (FPU), that supports all the Arm® single-precision data-processing instructions and all the data types.

The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application security.

Product Attributes

Core Processor: ARM® Cortex®-M33

Core Size: 32-Bit

Speed: 250MHz

Connectivity: CANbus, FIFO, I²C, IrDA, LINbus, SCI, SDIO, SMBus, SPI, UART/USART, USB

Peripherals: Brown-out Detect/Reset, DMA, I²S, PDR, POR, PWM, SHA, TRNG, Voltage Detect, WDT

Number of I/O: 49

Program Memory Size: 128KB (128K x 8)

Program Memory Type: FLASH

EEPROM Size: -

RAM Size: 32K x 8

Voltage - Supply (Vcc/Vdd) :1.71V ~ 3.6V

Data Converters: A/D 16x12b; D/A 1x12b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package / Case: 64-LQFP

Supplier Device Package: 64-LQFP (10x10)
