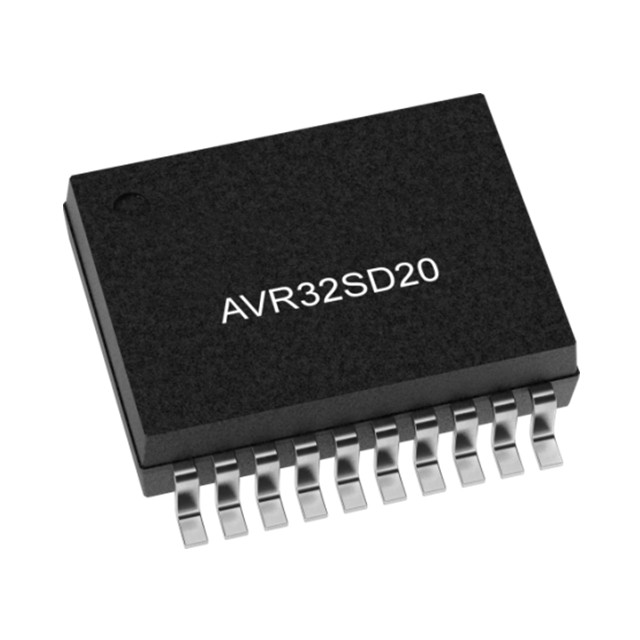

AVR32SD20T-E/SS is an 8-bit microcontroller (MCU) launched by Microchip, belonging to the AVR SD series. It adopts a dual-core lockstep (DCLS) architecture and has a main frequency of up to 20MHz. This device integrates an AVR CPU and a hardware multiplier, providing 32KB of flash memory (with SECDED ECC), 4KB of SRAM (with ECC), and 256-byte EEPROM.

The AVR32SD20T-E/SS microcontroller complies with ISO 26262 (ASIL C) and IEC 61508 (SIL 2) safety standards, ensuring its suitability for automotive safety systems, industrial automation, and medical equipment. In addition, the powerful performance and reliability make the AVR32SD20T-E/SS an ideal choice for consumer electronics and security systems.

Its main specifications include:

Core processor: AVR

Kernel specification: 8 bits

Speed: 20MHz

Connection capabilities: I2C, IrDA, SMBus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 15

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 4K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 13x10b; D/A 1x10b

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 20-SSOP
