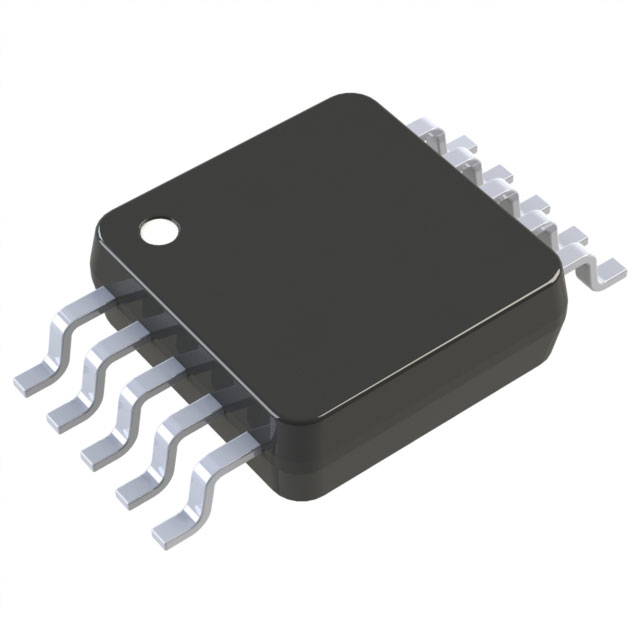

ADM3062EARMZ is 3.0V to 5.5V, IEC electrostatic discharge (ESD) protected RS-485 transceivers, allowing the devices to withstand ±12 kV contact discharges on the transceiver bus pins without latch-up or damage. It feature a 1/4 unit load input impedance that allows up to 128 transceivers on a bus.

Product Features

TIA/EIA RS-485 compliant over full supply range

3.0 V to 5.5 V operating voltage range on VCC

1.62 V to 5.5 V VIO logic supply option available

ESD protection on the bus pins

IEC 61000-4-2 ≥ ±12 kV contact discharge

IEC 61000-4-2 ≥ ±12 kV air discharge

HBM ≥ ±30 kV

Full hot swap support (glitch free power-up/power-down)

Full receiver short-circuit, open circuit, and bus idle fail-safe

Extended temperature range up to 125°C

PROFIBUS compliant at VCC ≥ 4.5 V

Half-duplex and full duplex models available

Allows connection of up to 128 transceivers onto the bus

Applications

Industrial fieldbuses

Process control

Building automation

PROFIBUS networks

Motor control servo drives and encoders
