The STM32H7B3QIY6Q devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 280 MHz. The Cortex®-M7 core features a floating point unit (FPU) and supports Arm® double precision (IEEE 754 compliant) and single precision data processing instructions and data types. The STM32H7B3QIY6Q device supports a full set of DSP instructions and a memory protection unit (MPU) for increased application security.

Product attributes

Core processor: ARM® Cortex®-M7

Core specification: 32-bit single core

Speed: 280MHz

Connectivity: Camera, CANbus, EBI/EMI, HDMI-CEC, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, PSSI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG

Peripherals: undervoltage detection/reset, DMA, I²S, LCD, POR, PWM, WDT

Number of I/Os: 87

Program memory capacity: 2MB (2M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 1.4M x 8

Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V

Data converter: A/D 17x16b; D/A 3x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

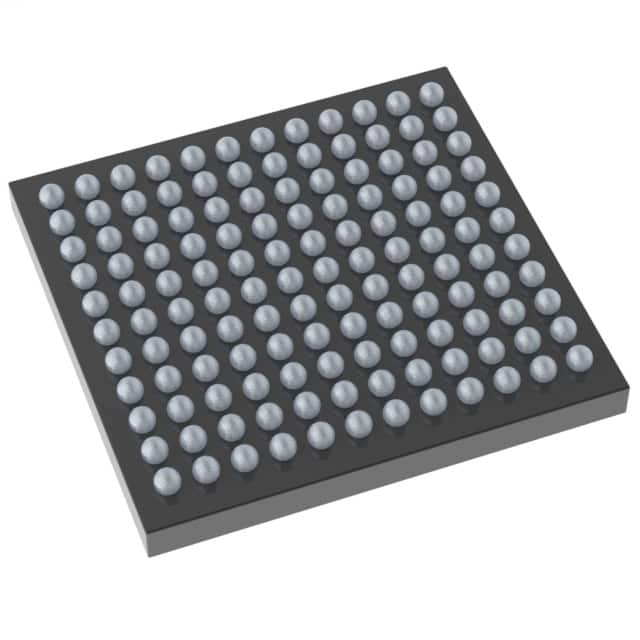

Package / Case: 132-UFBGA, WLCSP

Supplier Device Package: 132-WLCSP (4.57x4.37)

Basic Part Number: STM32H7B3
