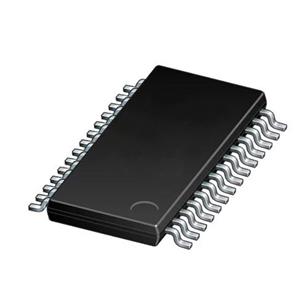

MC33XS2410EL is a four channel self-protected high-side switch. Featuring advanced digital monitoring and control function, the device is operational from 3.0 V to 60 V.

Features

Four fully protected 100 mΩ / dual 50 mΩ (at 25 °C) high-side switches

Active current limitation is 5 A

Configurable parallel mode to double current capability

16-bit SPI port communication 3.3 V / 5.0 V compatible with daisy chain capability

Outputs controllable via SPI-bus or direct inputs

Diagnostic status reported via SPI-bus

Watchdog for invalid commands or inactive SPI, with programmable timeout

Programmable interrupt generator that reports to FAULT pin or SPI-bus

Four independent PWM modules programmable from 0.5 Hz to 2.0 kHz with internal or external clock

Protection for battery transient overvoltage and reversed polarity battery connection

Configurable safe mode

Standby mode with very low power consumption

Digital PI PWM closed loop current regulation

External FAULTB pin for warning or IRQ reporting

10 mA open load detection in ON state

Latch off with configurable auto retry

Configurable severe short-circuit and overload protection

Programmable active current limit threshold to minimize short-circuit effect

Current from 5.0 mA to 5.0 A with ± 6 % above 1 A

Voltage from 0.5 V to 65 V with ± 6.5 % above 5.0 V

Temperature warning for each channel and central die monitoring

Qualified in accordance with AEC Q100 grade 1

Electrical transient disturbance immunity according of ISO 7637-2 and ISO 16750-2

Applications

12 V automotive, truck, and off-highway equipment

12 V and 24 V systems as well as industrial applications up to 60 V

LED modules

Solenoids valve and solenoid valve proportional with PI regulation

DC motor up to 20 W with PWM control

Incandescent bulbs up to 21 W

ECU module with large input bypass capacitor, 470 µF and above
