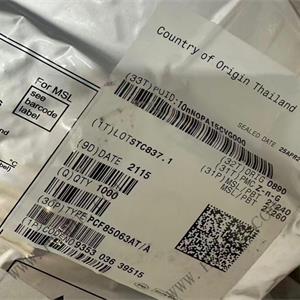

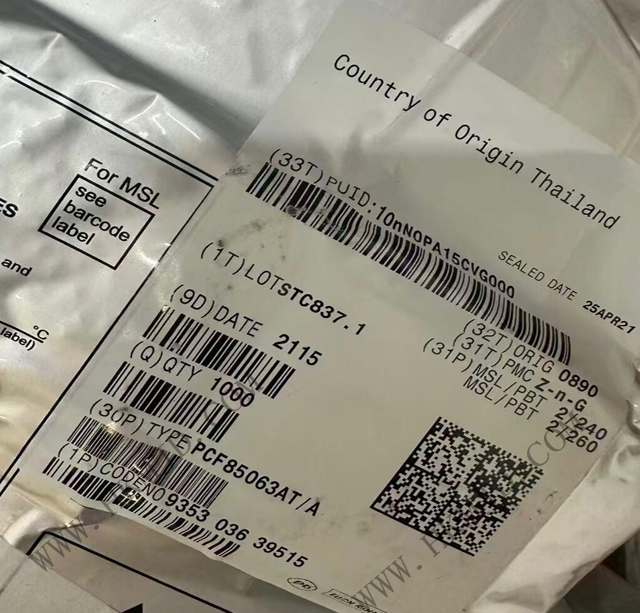

For picture reference, please see the specifications
< >

Commodity Model:PCF85063AT

Trade Name:Real-time Clock

Brand:NXP

Particular Year:21+

Package:SO-8

Delivery Date:New and Original

Stock: 15000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
PCF85063AT
Package
SO-8
Describe
Small real-time clock/calendar with alarm function and I²C bus

Product Description

The PCF85063AT is a CMOS1 real-time clock (RTC) and calendar chip optimised for low power consumption. The clock can be finely adjusted via an offset register. All addresses and data are transmitted serially via a two-wire bidirectional I2C bus. The maximum data rate is 400 kbit/s. After each write or read operation, the register address automatically increments.


PCF85063AT Features and Benefits

• Provides year, month, day, day of the week, hour, minute, and second based on a 32.768 kHz crystal oscillator

• Clock operating voltage: 0.9 V to 5.5 V

• Low current consumption; typical value of 0.22 μA (VDD = 3.3 V and Tamb = 25 °C)

• 400 kHz two-wire I2C bus interface (VDD = 1.8 V to 5.5 V)

• Programmable clock output for peripheral devices (32.768 kHz, 16.384 kHz, 8.192 kHz, 4.096 kHz, 2.048 kHz, 1.024 kHz, and 1 Hz)

• Optional integrated oscillator load capacitance, CL = 7 pF or CL = 12.5 pF

• Alarm function

• Countdown timer

• Minute and half-minute interrupts

• Oscillator stop detection function

• Internal power-on reset (POR)

• Programmable offset register for frequency adjustment


PCF85063AT Product Attributes

Type: Clock/Calendar

Features: Alarm, leap year, square wave output

Time Format: HH:MM:SS (12/24-hour)

Date Format: YY-MM-DD-dd

Interface: I2C, 2-wire serial

Voltage - Supply: 0.9V to 5.5V

Current - Timing (Maximum): 0.6µA @ 3.3V

Operating Temperature: -40°C to 85°C

Mounting Type: Surface Mount

Package/Case: 8-SOIC (0.154’, 3.90mm wide)

Supplier Device Package: 8-SO


PCF85063AT Applications

• Digital still cameras

• Digital video cameras

• Printers

• Copiers

• Mobile devices

• Battery-powered devices

Associated Products

Model

Brand

Package

Quantity

Describe

ISL1208IU8Z-T7A

Renesas

MSOP-8

2000

I2C Real Time Clock/Calendar, Low Power RTC with Battery Backed SRAM

PCA2131TF

NXP

HLSON16

2000

Nano-power highly accurate RTC with integrated quartz crystal for automotive applications.

DS1338U-18

Maxim

MSOP-8

10000

Real Time Clock (RTC) IC Clock/Calendar 56B I2C, 2-Wire Serial 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

MAX31343ETAY

Maxim

8-VFBGA

1000

Real Time Clock (RTC) IC Clock/Calendar 64B I ² C. Serial 8-VFBGA, WLBGA

MAX31341CETB

Maxim

10-WFDFN

1000

Real Time Clock (RTC) IC Clock/Calendar 64B I ² C 10-WFDFN bare solder pad

MAX31329NELB

Maxim

10-LGA

1000

Real Time Clock (RTC) IC Clock/Calendar 64B I²C 10-LLGA

MAX31343EKA

Maxim

8-VFBGA

1000

Real Time Clock (RTC) IC Clock/Calendar 64B I²C 8-VFBGA, WLBGA

PCF85053ATKJ

NXP

12-VFDFN

2000

Real Time Clock (RTC) IC Clock/Calendar 128B I²C

MAX31334EWC

Maxim

12-WFBGA

1000

Ultra-Low-Power Real Time Clock with Integrated Power Switch

MAX31331TETB

Maxim

TQFN-10

1000

Ultra-Low-Power, I2C Real-Time Clock and Power Management
