The LT3061IMS8E is a micropower, low dropout (LDO) linear regulator that operates over the 1.6V to 45V voltage range offering a range of fixed and adjustable output versions. The device delivers 100mA of output current with a typical dropout of 250mV. A single external capacitor provides programmable low noise reference performance and output soft-start capability. The device has a quiescent current of only 45μA and provides fast transient response with a minimum output capacitance of 3.3μF. The quiescent current is less than 3μA and the reference soft-start capacitor is reset at shutdown.

Product Characteristics

Output Configuration: Positive

Output Type: Adjustable

Number of Regulators: 1 1

Voltage - Input (Max): 45 В

Voltage - output (min/fixed): 0,6 В

Voltage - output (max.): 19 В

Voltage drop (max.): 0.43 V (at 100 mA)

Current - output: 100 mA

Current - Static (Iq): 90 µA

Current - Supply (Max): 4 mA 4 mA

PSRR: 85 dB (120 Hz)

Control functions: turn on, soft start

Protection functions: overcurrent, overheat, reverse polarity

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

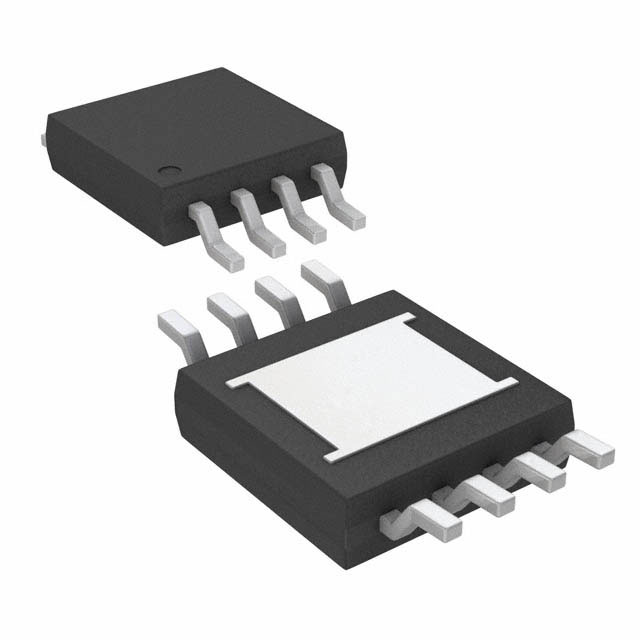

Package/case: 8-TSSOP, 8-MSOP (0.118 in, 3.00 mm wide) with open area

Delivery includes: 8-MSOP-EP

Applications

● Battery-powered systems

● Automotive power supplies

● Industrial power supplies

● Aerospace power supplies

● Portable Instruments
