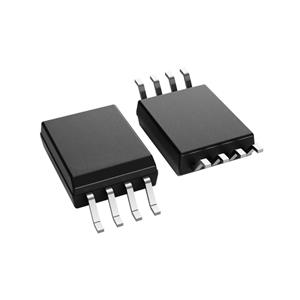

TPSI3052DWZR - Isolated Switch Driver With Integrated 15V Gate Supply

Product Description

TPSI3052DWZR is a fully integrated, isolated switch driver, which when combined with an external power switch, forms a complete isolated solid state relay (SSR). With a nominal gate drive voltage of 15 V with 1.5/3.0-A peak source and sink current, a large variety of external power switches can be chosen to meet a wide range of applications.

Features

No isolated secondary supply required

Drives external power transistors or SCRs

3kVRMS basic isolation

15V gate drive with 1.5/3A peak source and sink current

Up to 50mW supply for external auxiliary circuitry

Supports AC or DC switching

Supports two-wire or three-wire modes

Seven levels of power transfer, resistor selectable

Functional Safety-Capable

– Documentation available to aid functional safety system design

Temperature range –40 to 125°C ambient

Applications

Solid state relay (SSR)

Building automation

Factory automation and control
