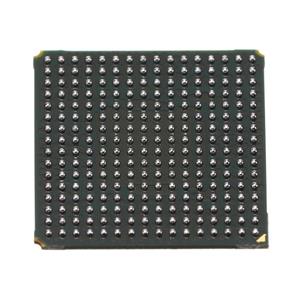

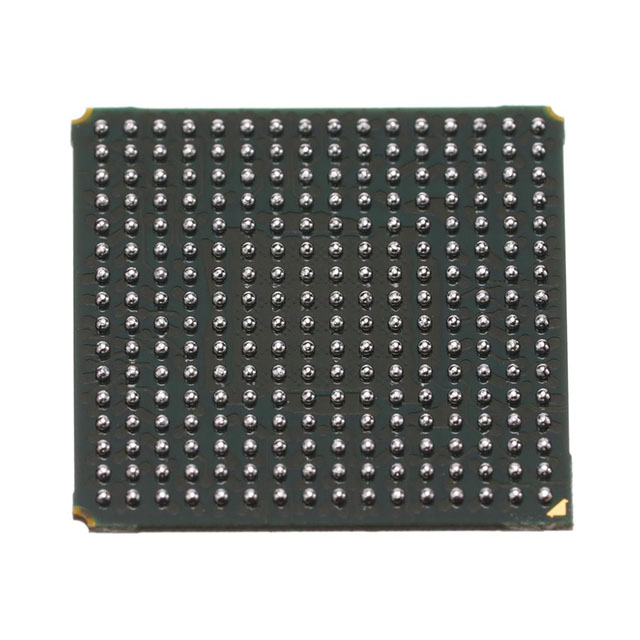

F28P650DK9NMR is a member of the C2000™ real-time microcontroller family of scalable,ultra-low latency devices designed for efficiency in power electronics, including but not limited to: high power density, high switching frequencies, and supporting the use of IGBT, GaN, and SiC technologies.

Features

Trigonometric Math Unit (TMU)

Fast Integer Division (FINTDIV)

CRC engine and instructions (VCRC)

Control Law Accelerator (CLA) CPU

IEEE 754 single-precision floating-point

Executes code independently of C28x CPUs

Three Analog-to-Digital Converters (ADCs)

16-bit mode, 1.19 MSPS each

12-bit mode, 3.92 MSPS each

Up to 40 single-ended or 19 differential inputs

24 redundant input channels for flexibility

Two 12-bit buffered DAC outputs

Increased 256 inputs for more capture options

New ADC SOC generation capability

eCAP can also be used for additional PWM

Six Enhanced Quadrature Encoder Pulse (eQEP) modules

Embedded Pattern Generator (EPG)

Four high-speed (up to 50-MHz) SPI ports

Four Serial Communications Interfaces (SCI)

Two I2C interfaces (400Kbps)

External boot option via SPI/ SCI/I2C

Two internal 10-MHz oscillators

On-chip crystal oscillator

Windowed watchdog timer module

Missing clock detection circuitry

Dual-clock Comparator (DCC)

Live Firmware Update (LFU)

Applications

Servo drive control module

Robot Servo Drive

CNC control

Mobile robot motor control

HVAC large commercial motor control

Linear motor segment controller

Central inverter

String inverter

Power Conversion System

DC Fast Charging Station

Inverter & motor control

Industrial AC-DC

Three phase UPS

Single phase online UPS

Merchant network and server PSU

On-board (OBC) & wireless charger

Automotive HVAC compressor module

Headlight
