The TMUX7202RQXR is a complementary metal-oxide semiconductor (CMOS) switch with latch-effect suppression in a single-channel 1:1 (SPST) configuration. The device operates on a single power supply (4.5V to 44V), dual power supply (± 4.5V to ± 22V), or asymmetrical power supply (e.g., V DD = 12 V, V SS = -5 V). The TMUX720x supports bidirectional analog and digital signals from VSS to VDD on both source (S) and drain (D) pins.

Specifications:

Switching circuit: SPST - Normally open

Multiplexer/demultiplexer circuit: 1:1

Circuit number: 1

On-resistance (Max.) : 1.6 ohms

Channel-to-channel matching (ΔRon) : -

Voltage - power supply, single (V+) : 4.5V ~ 44V

Voltage - power supply, double (V±) : -

Switching time (Ton, Toff) (maximum) : 140ns, 150ns

-3db Bandwidth: 22MHz

Charge injection: -20pC

Channel capacitance (CS(off), CD(off)) : 45pF, 65pF

Current - leakage (IS(off)) (Max.) : 1nA

Crosstalk: -

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

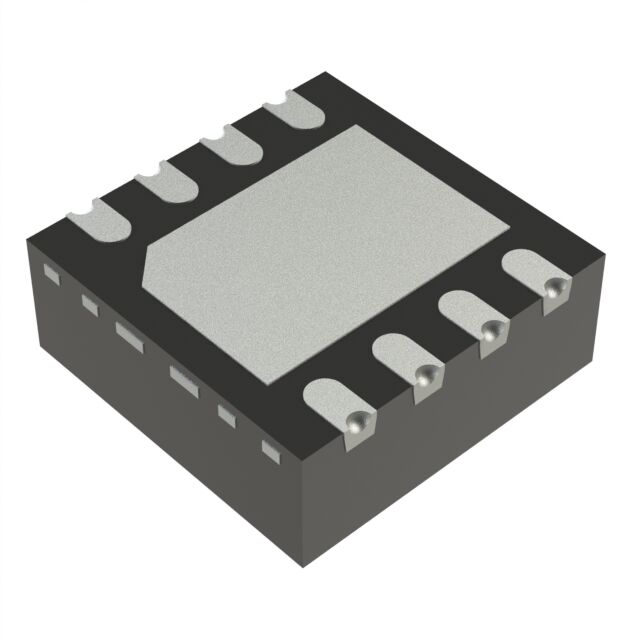

Package/housing: 8-WFDFN bare pad

Supplier Package: 8-WSON (3x2)
