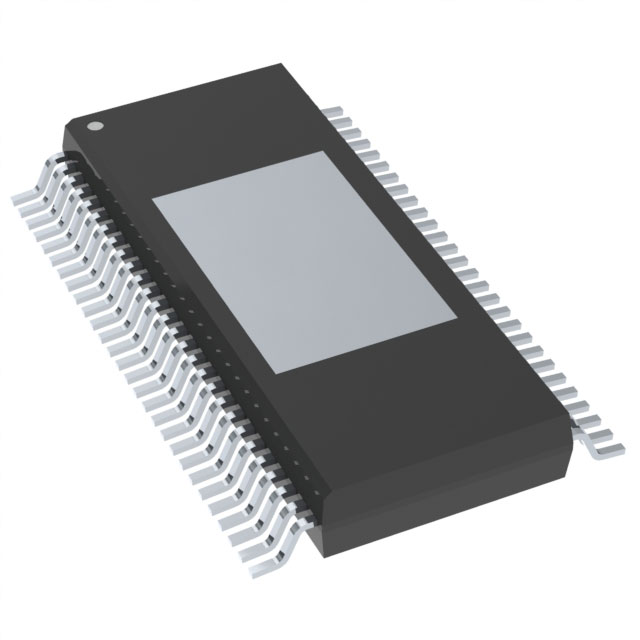

TAS6424MSQDKQRQ1 is 45W, 2MHz Digital Input 4-Channel Automotive Class-D Audio Amplifier with Load Dump Protection and I2C Diagnostics. The output switching frequency can be set either above the AM band, which eliminates AM-band interferences and reduces output filtering and cost, or below the AM band to optimize efficiency.

Product Features

Audio inputs

– 4 Channel I2S or 4/8-channel TDM input

– Input sample rates: 44.1 kHz, 48 kHz, 96 kHz

– Input formats: 16-bit to 32-bit I2S, and TDM

Audio Outputs

– Four-channel bridge-tied load (BTL)

– Two-channel parallel BTL (PBTL)

– Up to 2.1 MHz output switching frequency

Audio performance into 4 Ω at 14.4 V BTL

– THD+N < 0.02% at 1 W

– 42 µVRMS output noise

– –90 dB crosstalk

Load diagnostics

– Output open and shorted load

– Output-to-battery or ground shorts

– Line output detection up to 6 kΩ

– Host-independent operation

General Operation

– 4.5 V to 18 V supply voltage

– I2C Control with 4 address options

– Latched & Non-Latched Clip Detect

Applications

Automotive head unit

Automotive external amplifier
